USB C port 5V input, 2-cell series lithium battery charging management board 8.4V 1A-Module 26

2023-05-13 09:51:00

Original

247

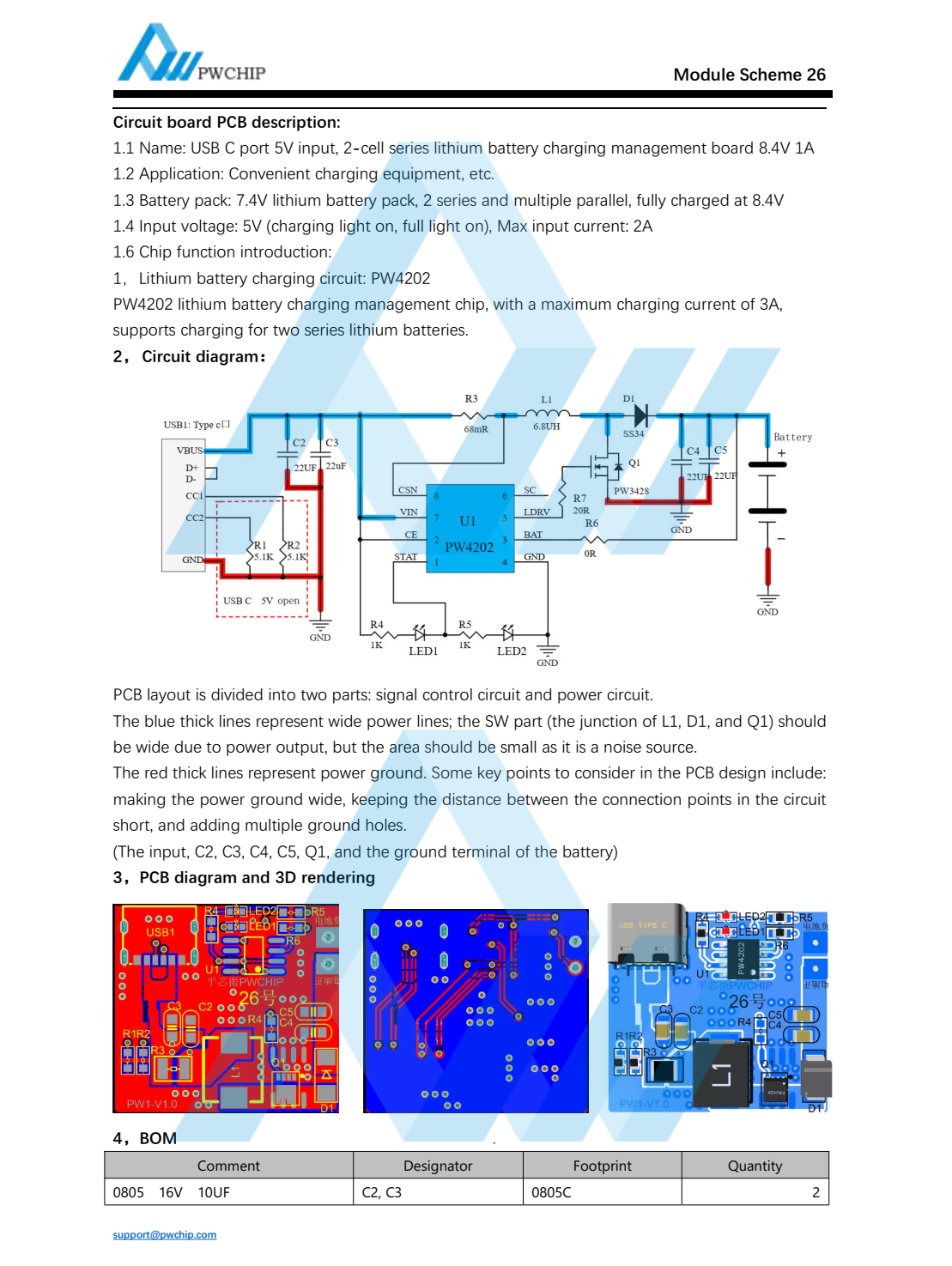

Summary : 1.1 Name: USB C port 5V input, 2-cell series lithium battery charging management board 8.4V 1A1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 7.4V lithium battery pack, 2 series and multiple parallel, fully charged at 8.4V1.4 Input voltage: 5V (charging light on, full light on), Max input current: 2A

26号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
