Lithium Battery Charge and Discharge Board with 5V1A Charging and Discharging, with Input OVP Function-Module 88
Lithium Battery Charge and Discharge Board with 5V1A Charging and Discharging, with Input OVP Function-Module 88
2023-05-15 10:17:00
UA
Original
293

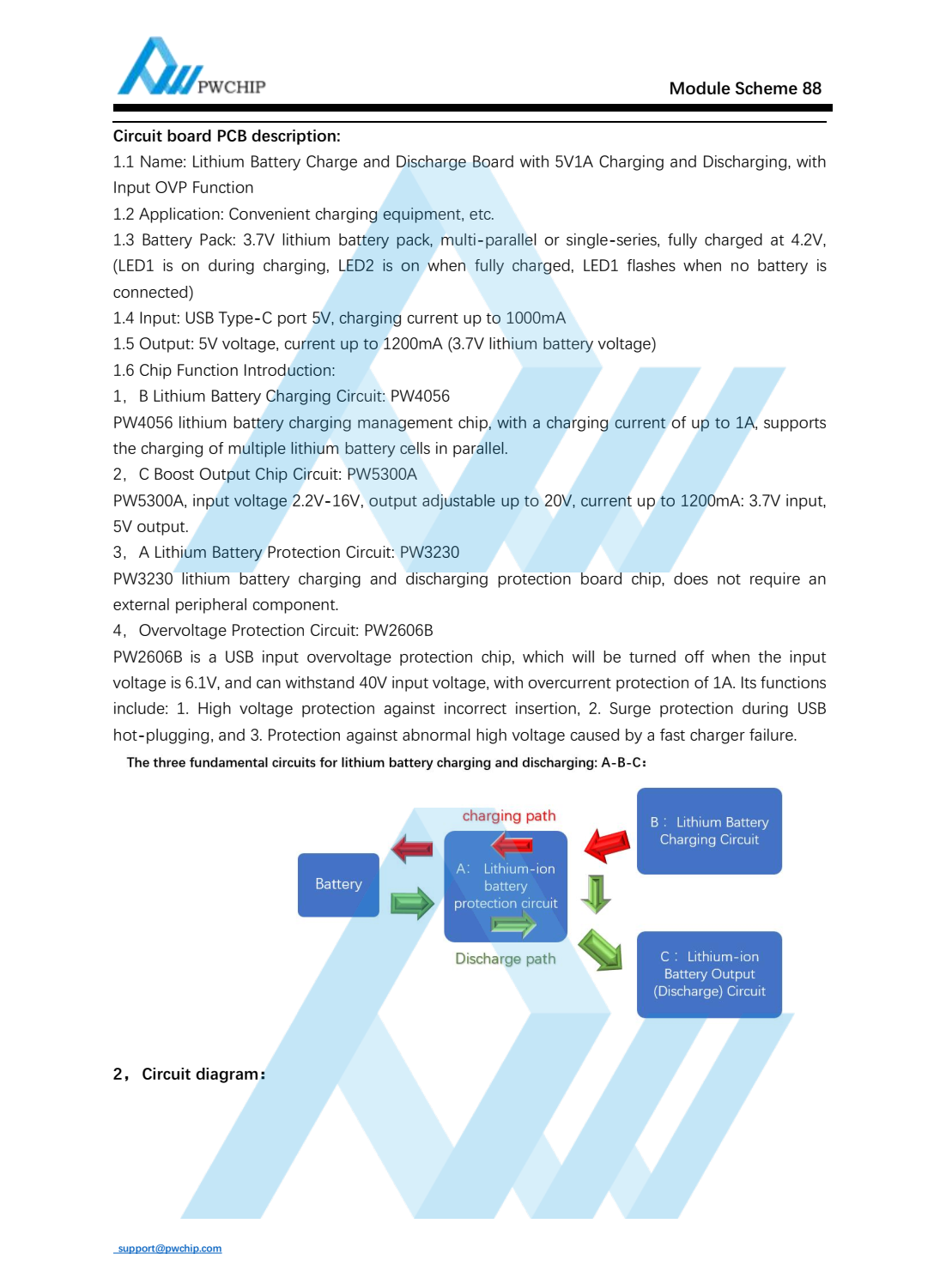

Summary : 1.1 Name: Lithium Battery Charge and Discharge Board with 5V1A Charging and Discharging, withInput OVP Function1.2 Application: Convenient charging equipment, etc.1.3 Battery Pack: 3.7V lithium battery pack, multi-parallel or single-series, fully charged at 4.2V,(LED1 is on during charging, LED2 is on when fully charged, LED1 flashes when no battery isconnected)1.4 Input: USB Type-C port 5V, charging current up to 1000mA1.5 Output: 5V voltage, current up to 1200mA (3.7V lithium battery voltage)
