5V-24V Input Single Cell Lithium Battery 1A Charging and 5V1A Discharging Power Supply Board-Module 98
5V-24V Input Single Cell Lithium Battery 1A Charging and 5V1A Discharging Power Supply Board-Module 98
2023-05-15 11:22:00
UA
Original
317

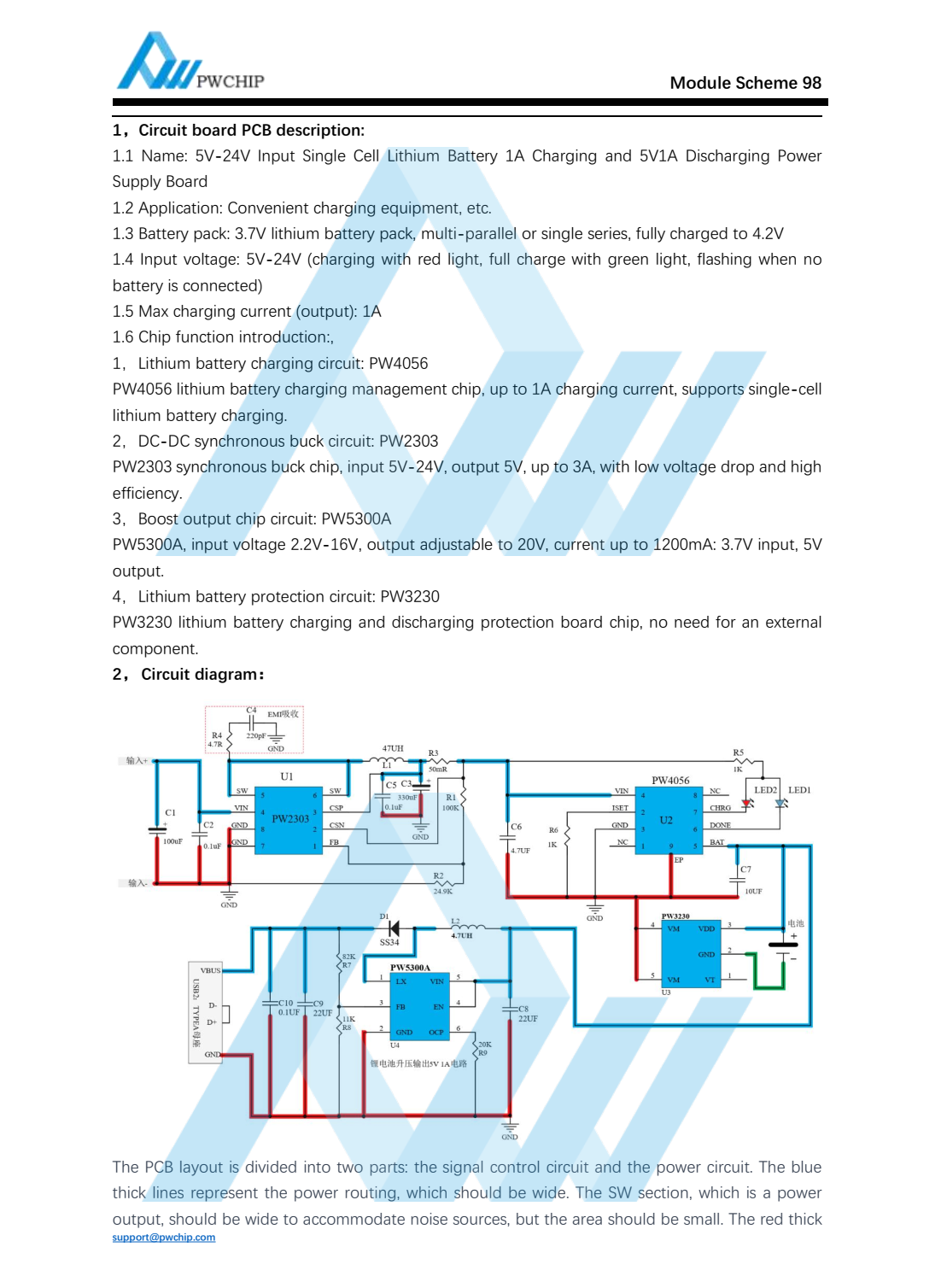

Summary : 1.1 Name: 5V-24V Input Single Cell Lithium Battery 1A Charging and 5V1A Discharging PowerSupply Board1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 3.7V lithium battery pack, multi-parallel or single series, fully charged to 4.2V1.4 Input voltage: 5V-24V (charging with red light, full charge with green light, flashing when nobattery is connected)1.5 Max charging current (output): 1A
