5V-12V 2A Fast Charge PD/QC Charging and Discharging 5V2.4A with Protection Board Scheme for 3S Lithium Battery-Module 125
5V-12V 2A Fast Charge PD/QC Charging and Discharging 5V2.4A with Protection Board Scheme for 3S Lithium Battery-Module 125
2023-05-15 15:21:00
UA
Original
295

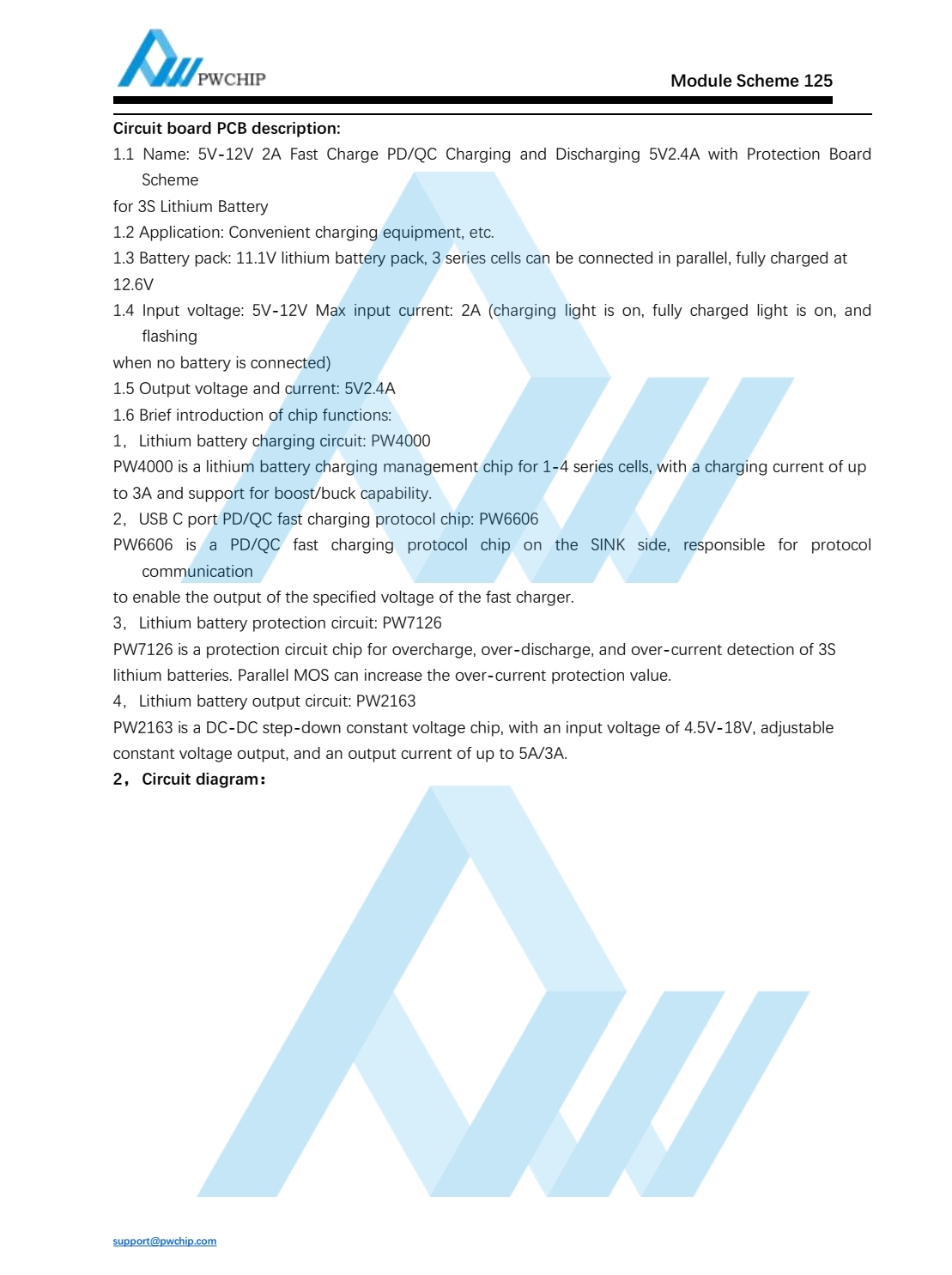

Summary : 1.1 Name: 5V-12V 2A Fast Charge PD/QC Charging and Discharging 5V2.4A with Protection BoardSchemefor 3S Lithium Battery1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 11.1V lithium battery pack, 3 series cells can be connected in parallel, fully charged at12.6V1.4 Input voltage: 5V-12V Max input current: 2A (charging light is on, fully charged light is on, andflashingwhen no battery is connected)
