USB input with 6.1V overvoltage off, 36V withstand voltage protection, single lithium battery 3A charging management board
- 2023-05-12 15:11:38
- lu Original
- 241
1 Circuit board PCB description:
1.1 Name : USB input with 6.1Vovervoltage off, 36V withstand voltage protection, single lithium battery 3Acharging management board
1.2 Applications:Convenient charging devices, etc.
1.3 Battery pack: 3.7V lithium battery pack, multiple parallel or singleseries connection, full 4.2V
1.4 Input voltage: 5V( When charging, the lightwill be on, and when it is fully charged, the light will turn)
1.5 Max chargingcurrent : 3A
1.6 Introduction to Chip Functions:
1, Lithium battery charging circuit:PW4035
PW4035 Lithium battery charge managementchip, Up to 3.5A charging current, support single series lithium battery charging.
2, Overvoltage protection circuit:PW2609
PW2609 is a USB input overvoltage protection chip, adjustable input overvoltage shutdown,default 6.1V, 36V input protection.
Function: 1, Misplaced high voltage protection 2, USB Hot SwapProtection, 3, Abnormal high voltage protection fordamaged fast charger
2, Circuit diagram :
PCB layout is divided into two parts: signal controlcircuit + power circuit
Note 1: The blue thick line is the power trace, the layout should be wide,; SW part (Q1, D1, L1 three devices connected) is not only the poweroutput, but also it is a noise source, the layout should be wide and the area shouldbe small.
Note 2: The red thick line is the power ground, the main points of the drawing board: to bewide, the shorter the distance between the connecting loops at each point, themore holes are punched in the ground.(input, C1, PW2609 pin 6, C2, C5, PW4052bottom pad, C3, C4, and battery ground)

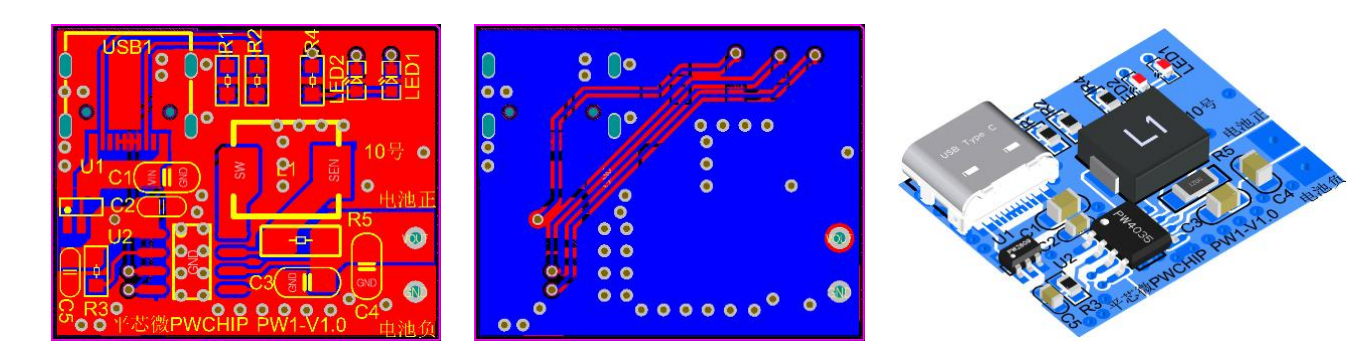

3 , PCB diagram and 3D display diagram
4 , BOM Material List
Comment
Designator
Footprint
Quantity
0805 50V 10UF
C1
0805C
1
0603 16V 10uF
C2
0603A
1
0805 16V 22UF
C3, C4
0805C
2
0603 16V 0.1uF
C5
0603A
1
Integrated molded inductor 0650-3.3UH
L1
SMD
1
0603 LED Green
LED1
0603A
1
0603 LED Red
LED2
0603A
1
0603 1% 5.1K
R1, R2
0603SL
2
0603 5% 10K
R3
0603SL
1
0603 1% 1K
R4
0603SL
1
1206 1% 17mR
R5
1206R
1
PW2609
U1
SOT23-6
1
PW4035
U2
ESOP8
1
USB TYPE C 16PIN
USB1
USB
1
