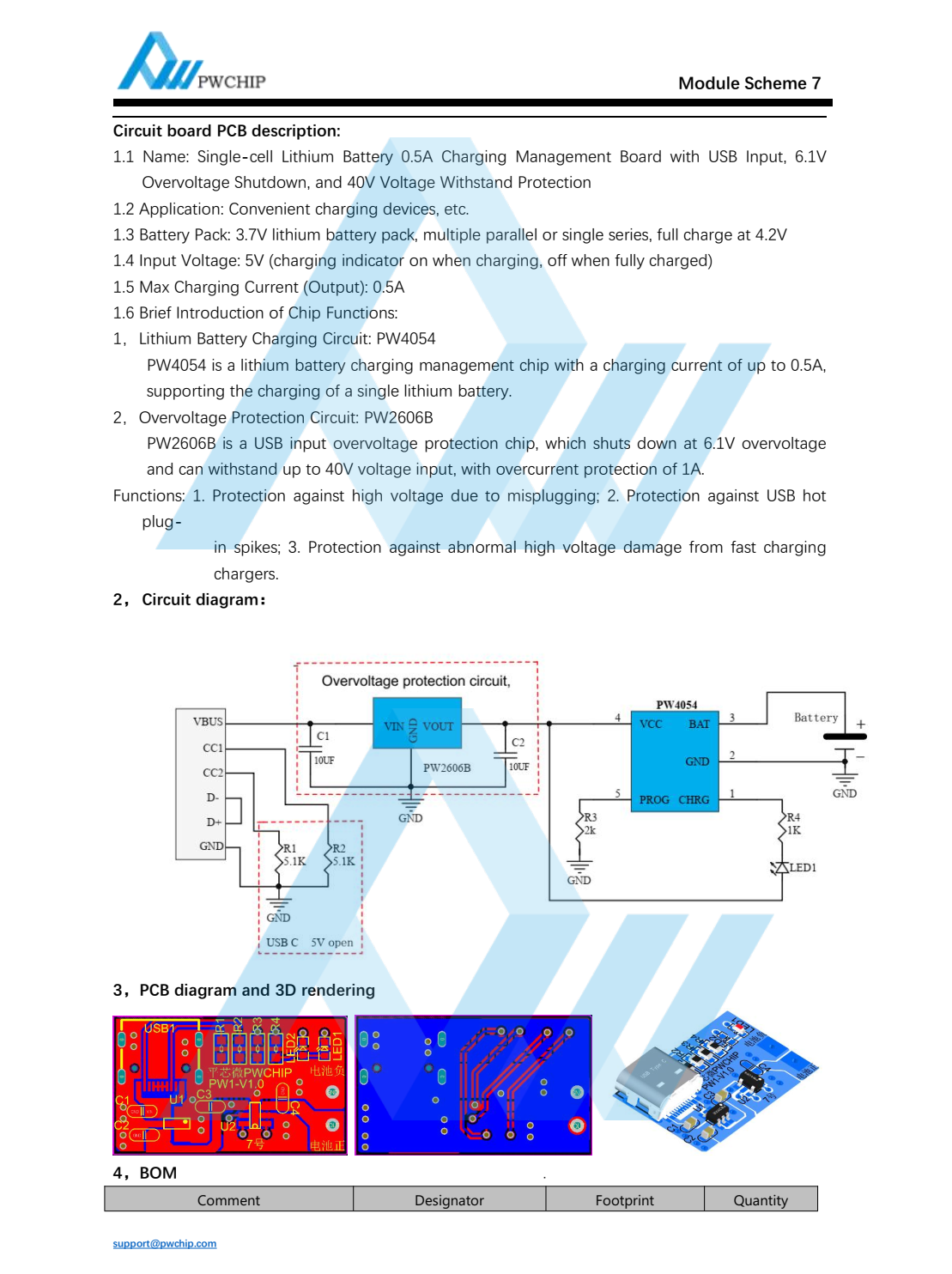

Single-cell Lithium Battery 0.5A Charging Management Board with USB Input, 6.1V Overvoltage Shutdown, and 40V Voltage Withstand Protection-Module 7
Single-cell Lithium Battery 0.5A Charging Management Board with USB Input, 6.1V Overvoltage Shutdown, and 40V Voltage Withstand Protection-Module 7
2023-05-12 16:30:00
杨工
Original
272
Summary : 1.1 Name: Single-cell Lithium Battery 0.5A Charging Management Board with USB Input, 6.1VOvervoltage Shutdown, and 40V Voltage Withstand Protection1.2 Application: Convenient charging devices, etc.1.3 Battery Pack: 3.7V lithium battery pack, multiple parallel or single series, full charge at 4.2V1.4 Input Voltage: 5V (charging indicator on when charging, off when fully charged)
