USB input with 6.1V overvoltage shutdown, 36V withstand voltage protection, single-cell lithium battery 2A charging management board-Module 9

2023-05-12 16:37:00
杨工
Original
244

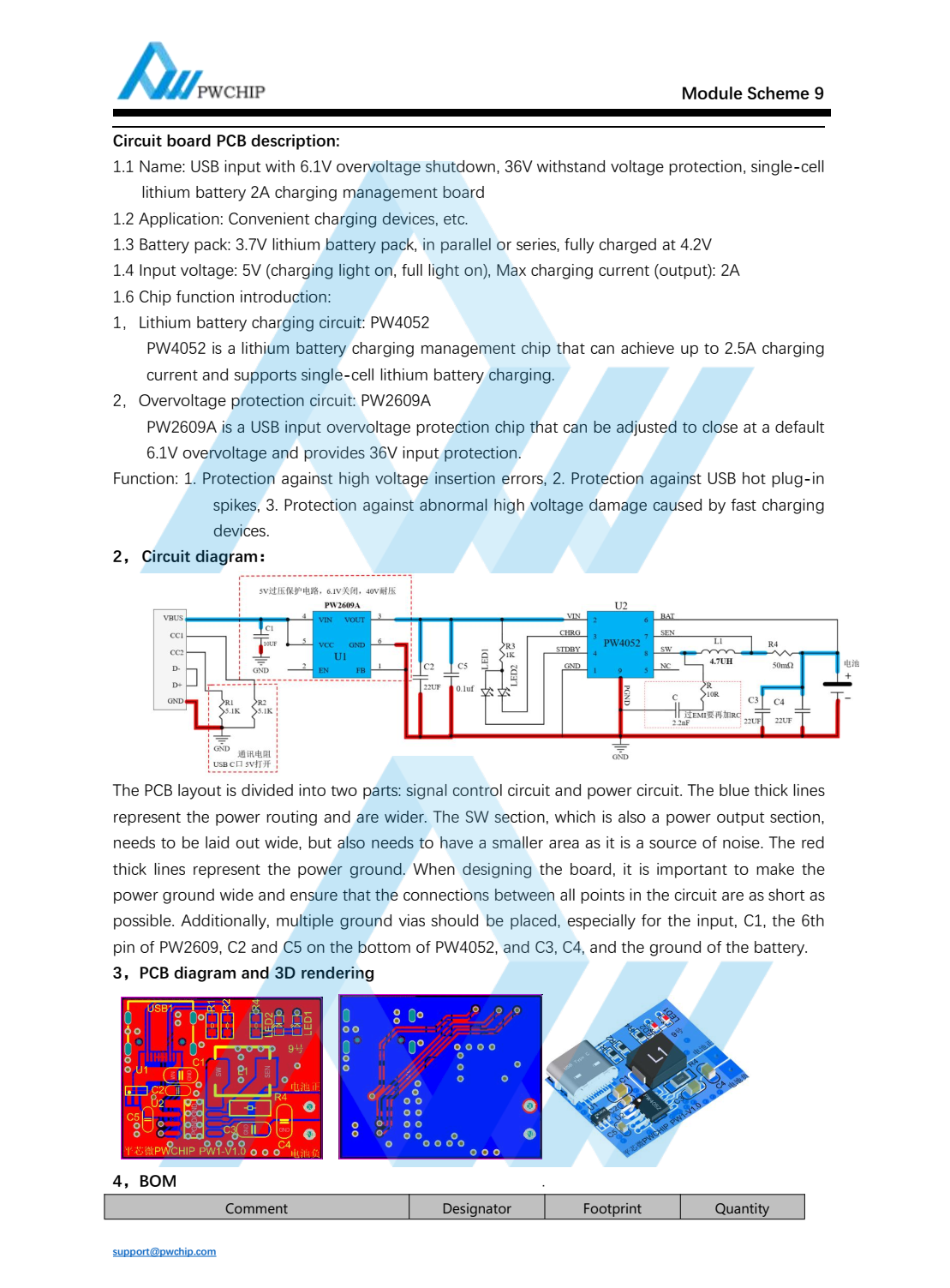

Summary : 1.1 Name: USB input with 6.1V overvoltage shutdown, 36V withstand voltage protection, single-celllithium battery 2A charging management board1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 3.7V lithium battery pack, in parallel or series, fully charged at 4.2V
