USB input with 6.1V overvoltage shutdown, 40V high voltage protection, 4.35V lithium battery 0.5A charging management board-Module 11

2023-05-12 16:53:00
杨工
Original
279

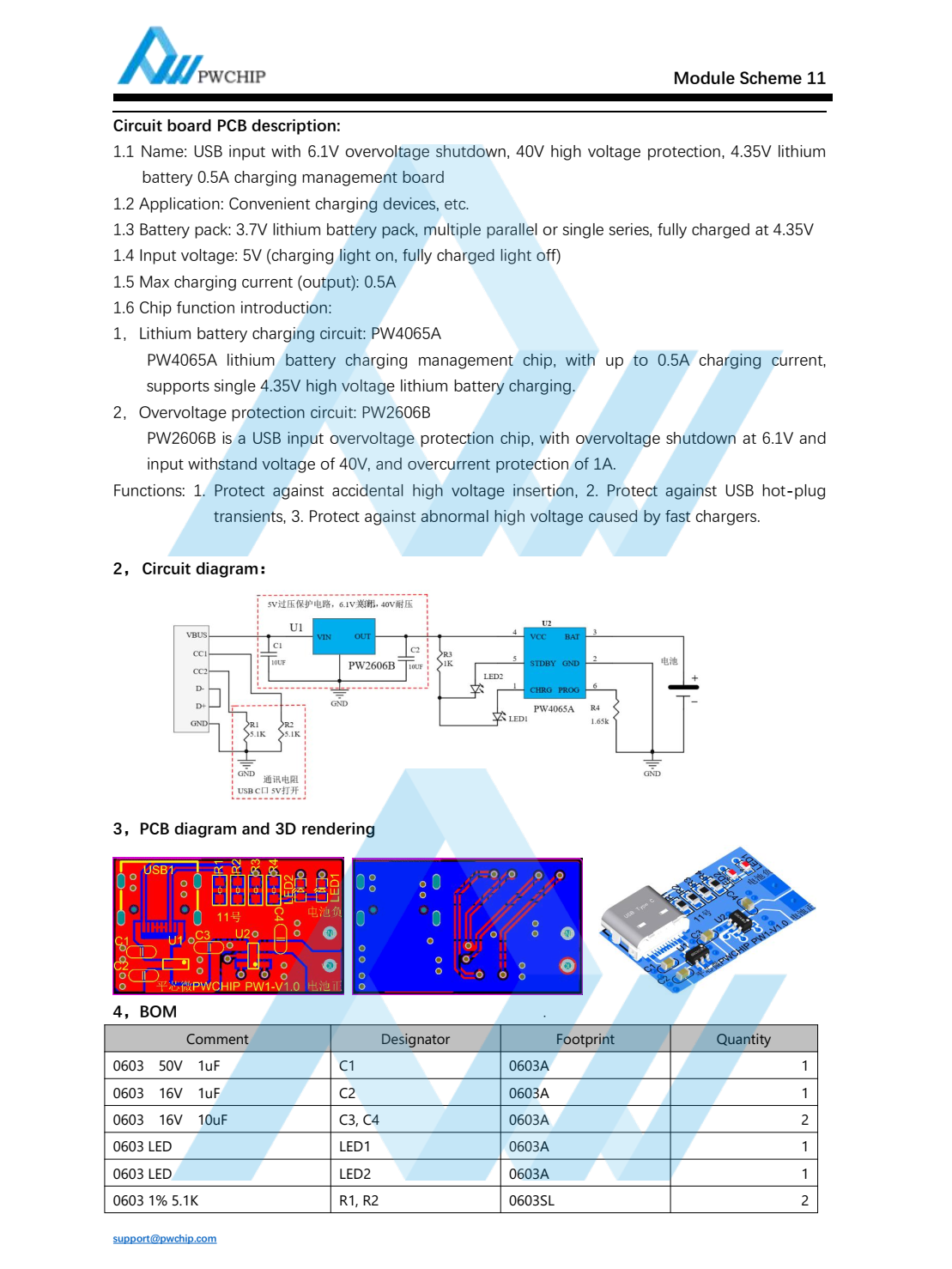

Summary : 1.1 Name: USB input with 6.1V overvoltage shutdown, 40V high voltage protection, 4.35V lithiumbattery 0.5A charging management board1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 3.7V lithium battery pack, multiple parallel or single series, fully charged at 4.35V1.4 Input voltage: 5V (charging light on, fully charged light off)
