USB C input with overvoltage protection, two-cell series lithium battery charging management board 8.4V 1A -Module 27

2023-05-13 10:13:00

Original

257

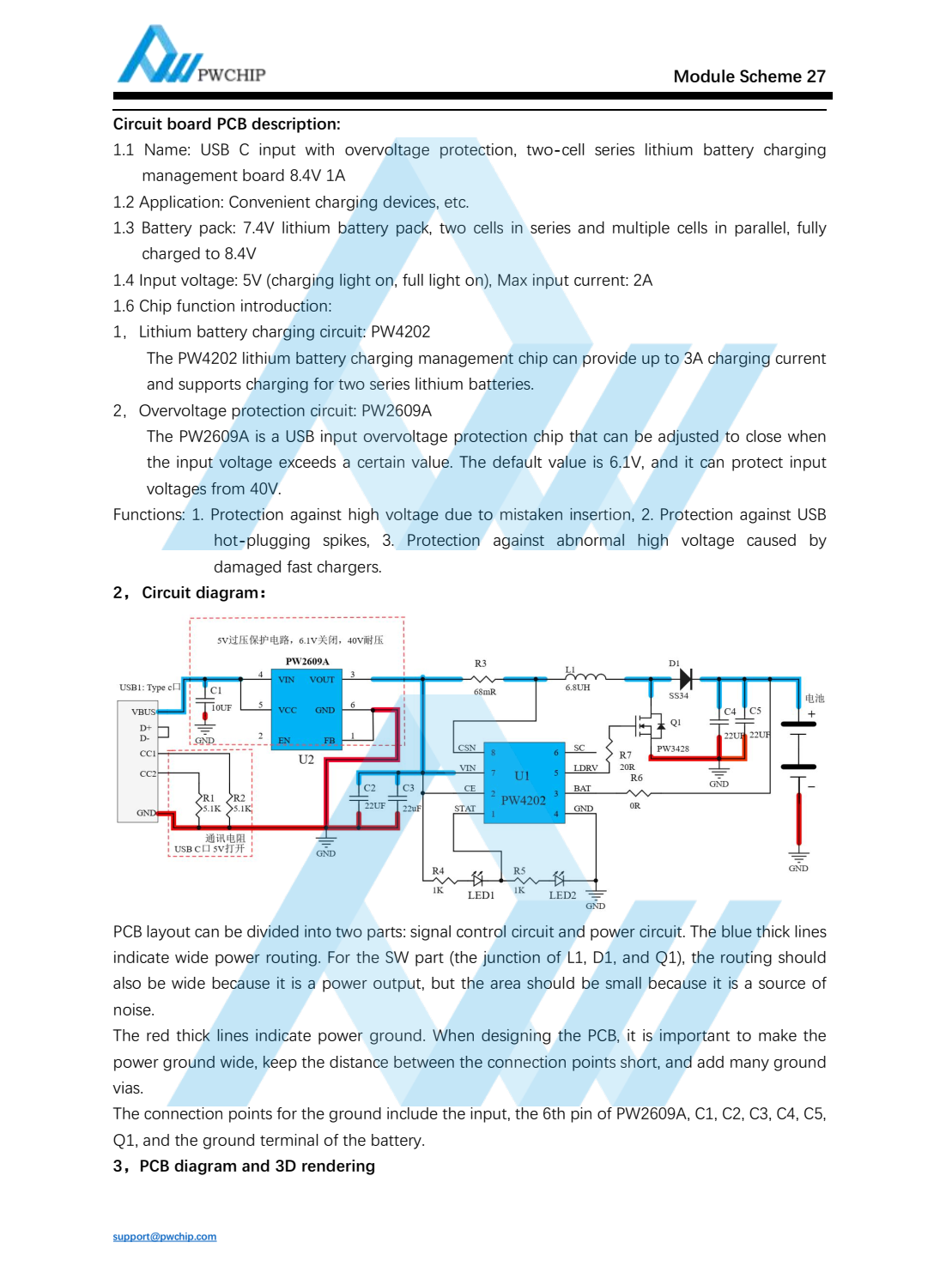

Summary : 1.1 Name: USB C input with overvoltage protection, two-cell series lithium battery chargingmanagement board 8.4V 1A1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 7.4V lithium battery pack, two cells in series and multiple cells in parallel, fullycharged to 8.4V1.4 Input voltage: 5V (charging light on, full light on), Max input current: 2A

27号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
