PW4053A, USB C port 5V3A input, three-series lithium battery charging management board-Module 34

2023-05-13 11:13:00

Original

294

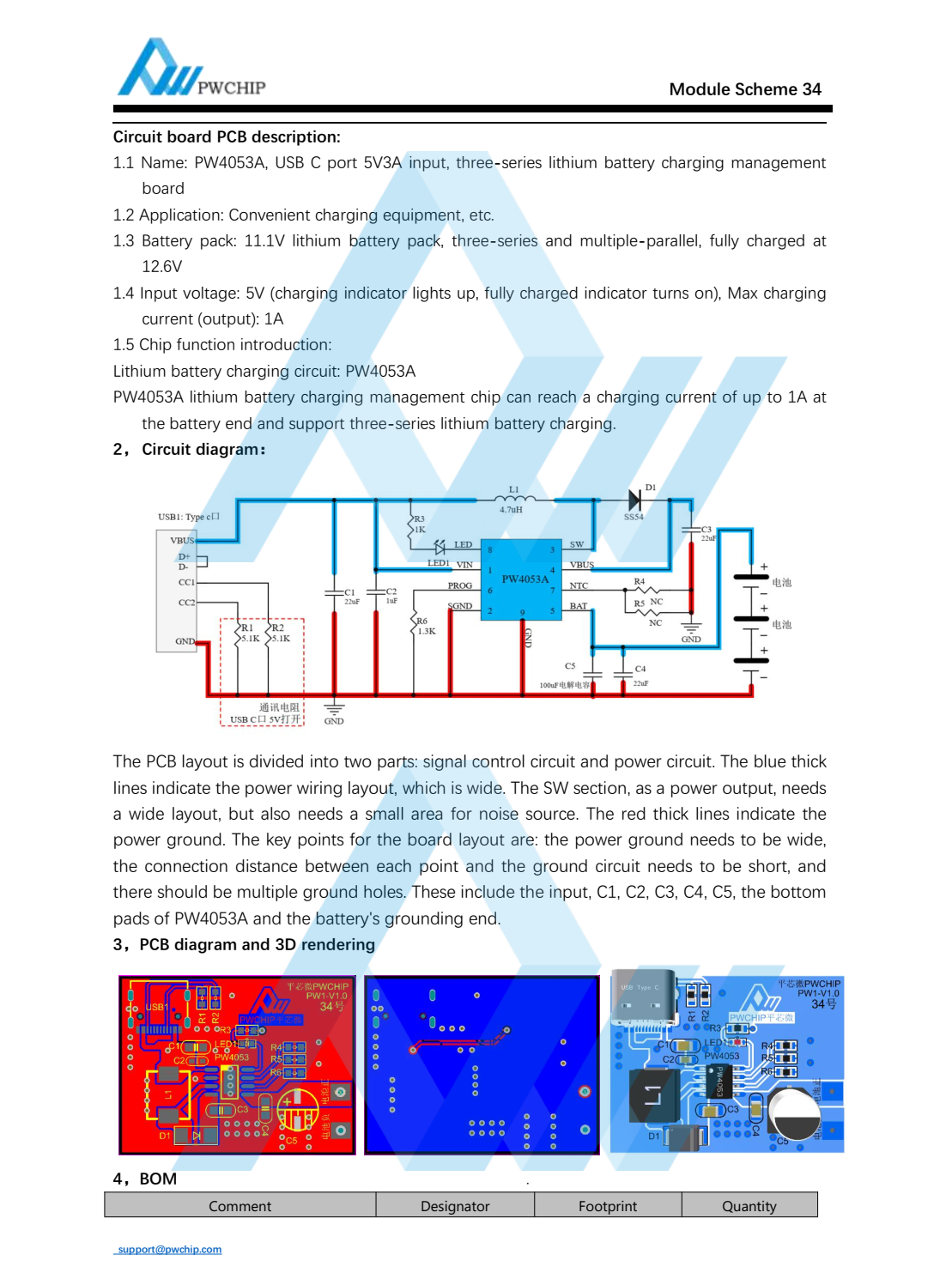

Summary : 1.1 Name: PW4053A, USB C port 5V3A input, three-series lithium battery charging managementboard1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 11.1V lithium battery pack, three-series and multiple-parallel, fully charged at12.6V1.4 Input voltage: 5V (charging indicator lights up, fully charged indicator turns on), Max chargingcurrent (output): 1A

34号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
