USB-C 5V Input, 12.6V Three-Cell Series Lithium Battery Charging Management Board with PW4053M Chip-Module 36

2023-05-13 11:26:00

Original

280

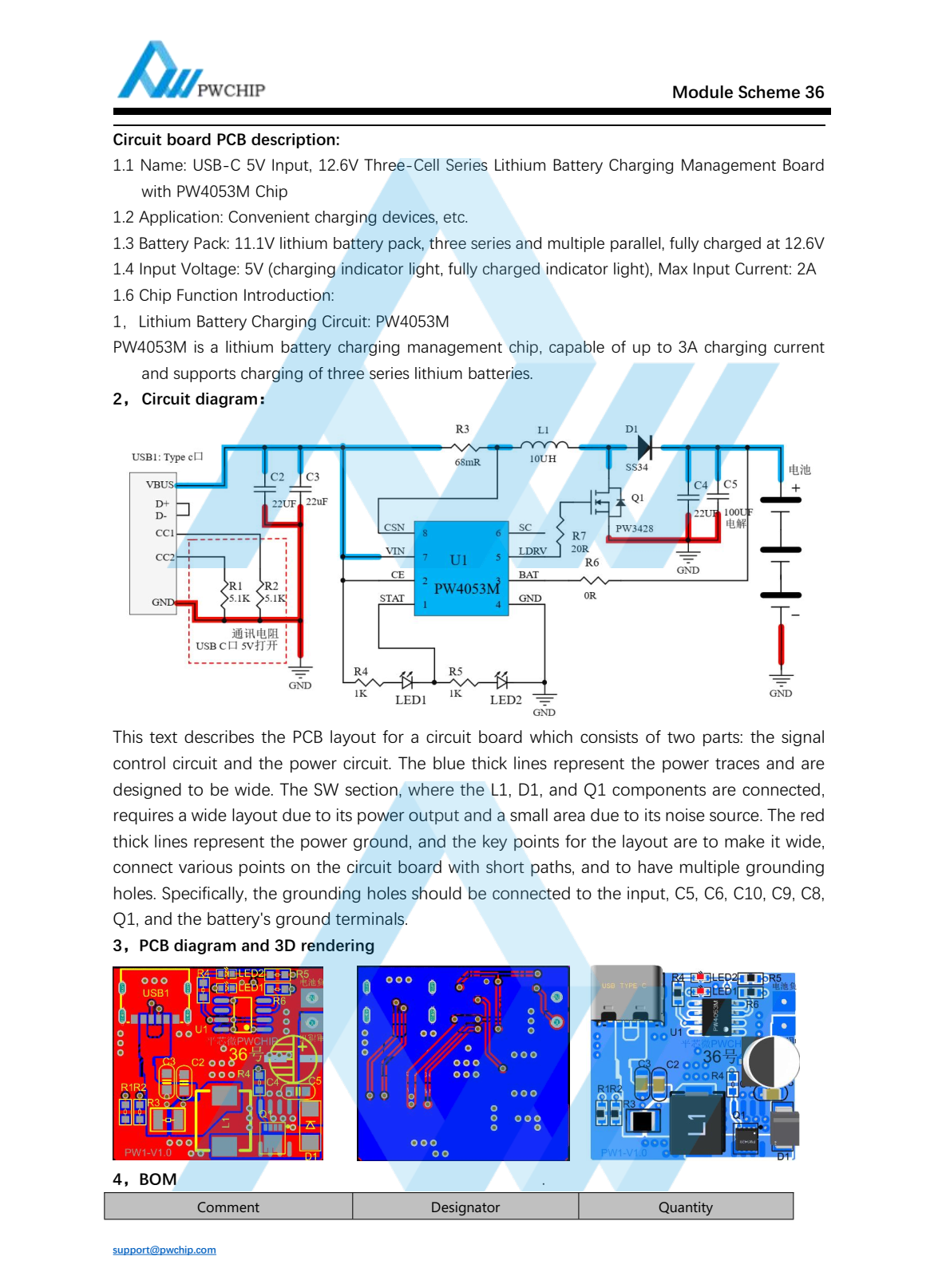

Summary : 1.1 Name: USB-C 5V Input, 12.6V Three-Cell Series Lithium Battery Charging Management Boardwith PW4053M Chip1.2 Application: Convenient charging devices, etc.1.3 Battery Pack: 11.1V lithium battery pack, three series and multiple parallel, fully charged at 12.6V1.4 Input Voltage: 5V (charging indicator light, fully charged indicator light), Max Input Current: 2A

36号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
