Two-cell series lithium battery protection board, with 4A overcurrent protection-Module 80

2023-05-15 09:40:00

Original

307

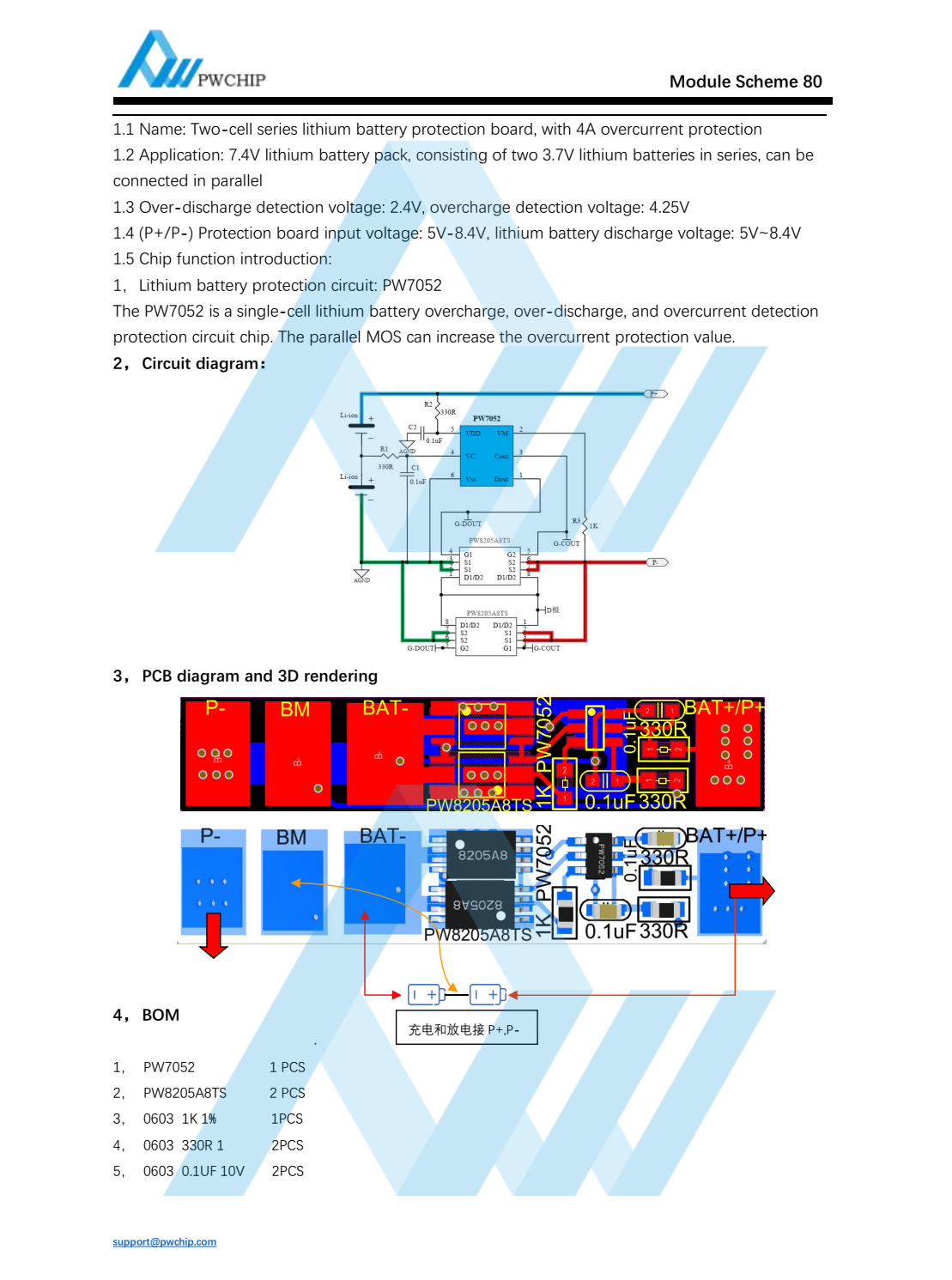

Summary : 1.1 Name: Two-cell series lithium battery protection board, with 4A overcurrent protection1.2 Application: 7.4V lithium battery pack, consisting of two 3.7V lithium batteries in series, can beconnected in parallel1.3 Over-discharge detection voltage: 2.4V, overcharge detection voltage: 4.25V1.4 (P+/P-) Protection board input voltage: 5V-8.4V, lithium battery discharge voltage: 5V~8.4V

80号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
