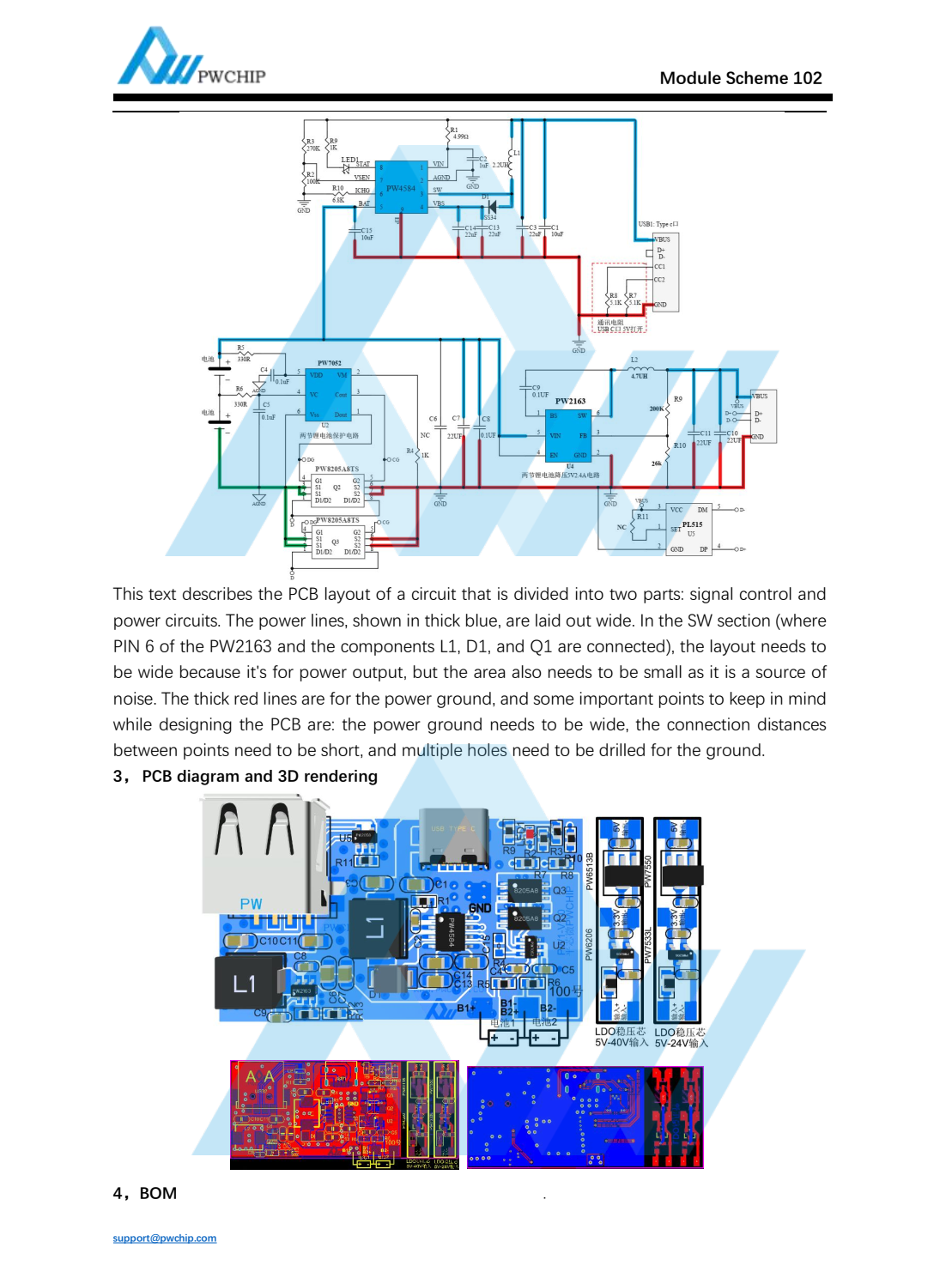

Two-Cell Series Lithium Battery Charge and Discharge Board with 5V2A Input and Output-Module 102

2023-05-15 11:41:00
UA
Original
259
Summary : 1.1 Name: Two-Cell Series Lithium Battery Charge and Discharge Board with 5V2A Input andOutput1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 7.4V lithium battery pack, two series and multiple parallel, full charge at 8.4V1.4 Input (USB1): 5V2A (charging indicator light, full charge indicator light, no battery flashing light)1.5 Output (USB2): 5V2.4A (maximum 3A)
