Two-cell Lithium Battery Charge and Discharge Board, 5V2A output, Input 5V-24V charging-Module 106

2023-05-15 13:08:00
UA
Original
285

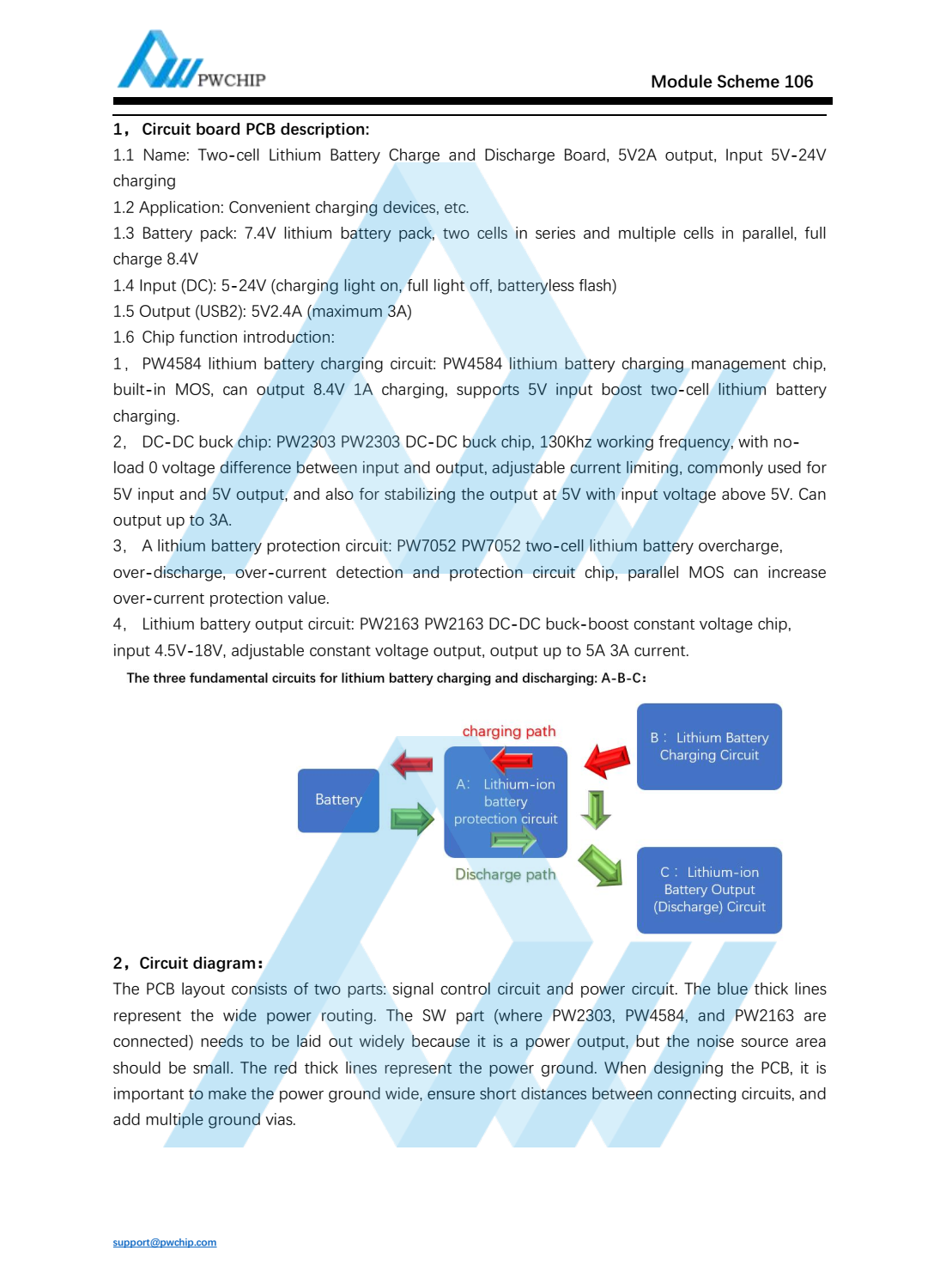

Summary : 1.1 Name: Two-cell Lithium Battery Charge and Discharge Board, 5V2A output, Input 5V-24Vcharging1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 7.4V lithium battery pack, two cells in series and multiple cells in parallel, fullcharge 8.4V1.4 Input (DC): 5-24V (charging light on, full light off, batteryless flash)1.5 Output (USB2): 5V2.4A (maximum 3A)
