3S Lithium Battery Charging and Discharging Board, 5V2A Input and 5V2.4A Output-Module 109

2023-05-15 13:37:00

Original

307

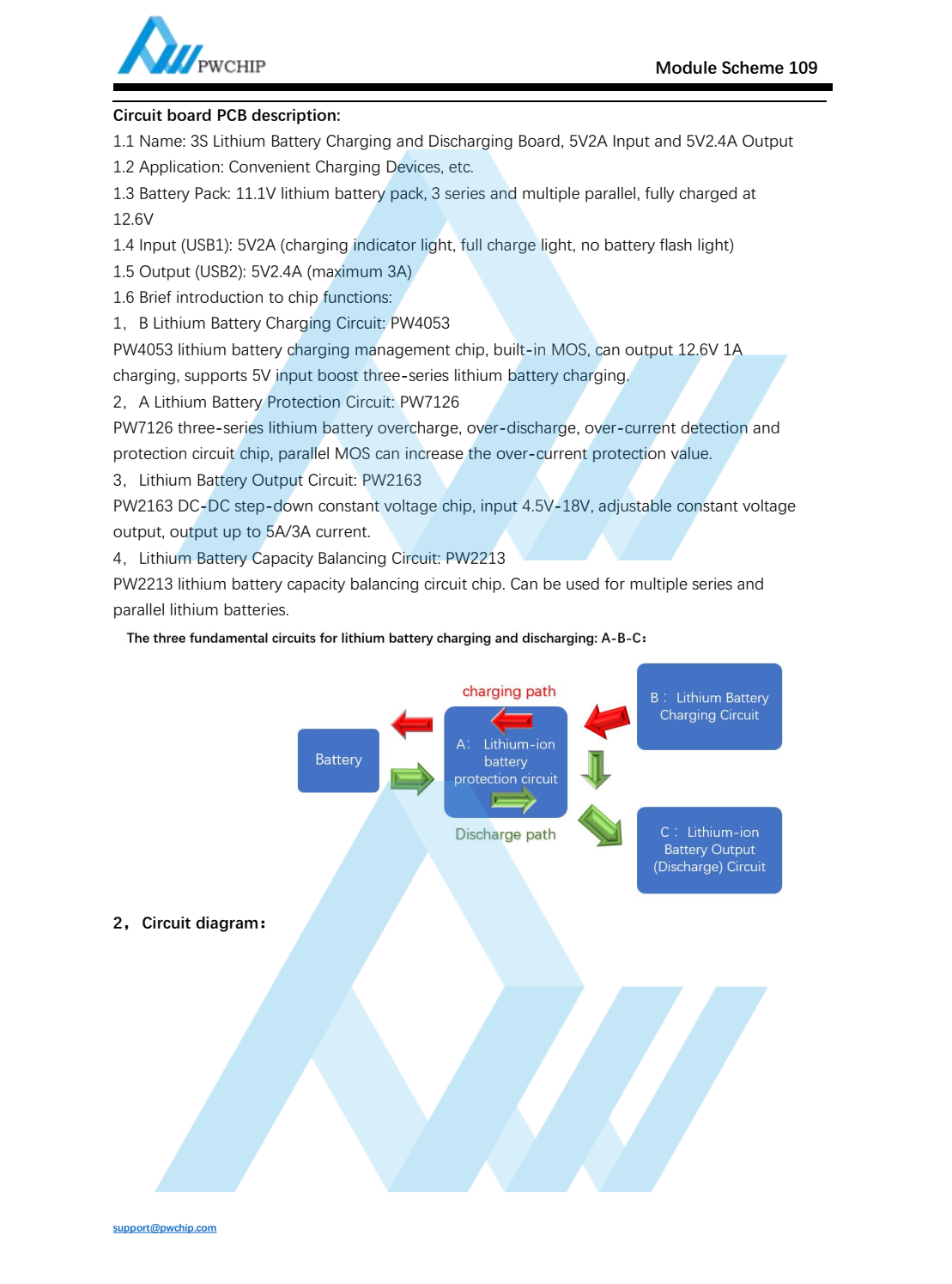

Summary : 1.1 Name: 3S Lithium Battery Charging and Discharging Board, 5V2A Input and 5V2.4A Output1.2 Application: Convenient Charging Devices, etc.1.3 Battery Pack: 11.1V lithium battery pack, 3 series and multiple parallel, fully charged at12.6V1.4 Input (USB1): 5V2A (charging indicator light, full charge light, no battery flash light)1.5 Output (USB2): 5V2.4A (maximum 3A)

109号带均衡密码是PWCHIP ，WWW.PWCHIP.COM.zip 0 下载
