Four-Cell Series Lithium Battery Charging and Discharging Board, with 5V2A input and 5V2.4A output, with high-voltage input protection-Module 114
Four-Cell Series Lithium Battery Charging and Discharging Board, with 5V2A input and 5V2.4A output, with high-voltage input protection-Module 114
2023-05-15 14:07:00
UA
Original
285

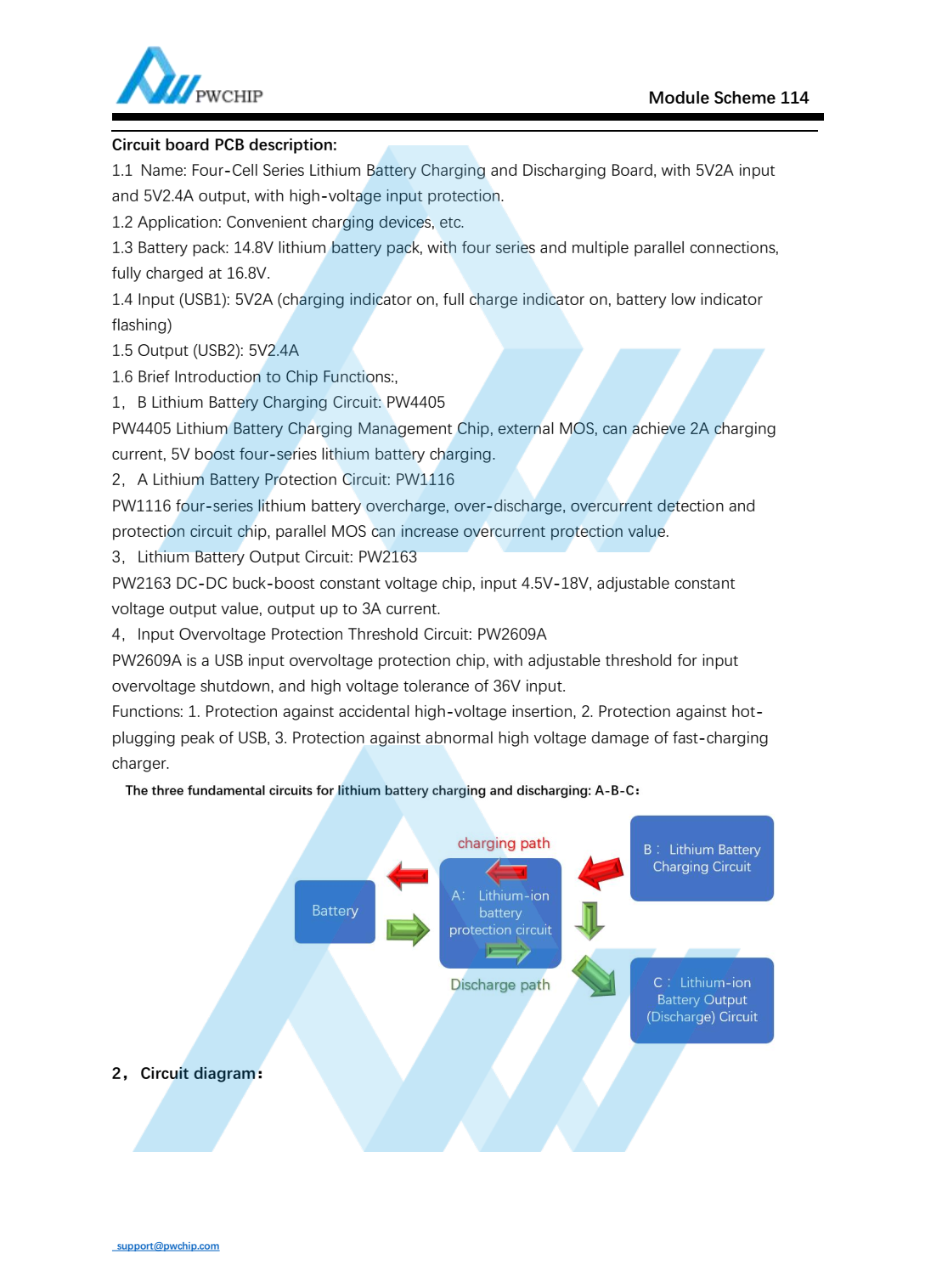

Summary : 1.1 Name: Four-Cell Series Lithium Battery Charging and Discharging Board, with 5V2A inputand 5V2.4A output, with high-voltage input protection.1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 14.8V lithium battery pack, with four series and multiple parallel connections,fully charged at 16.8V.1.4 Input (USB1): 5V2A (charging indicator on, full charge indicator on, battery low indicatorflashing)1.5 Output (USB2): 5V2.4A
