  • Four-cell series lithium battery protection solution board, 20A overcurrent protection, with battery balancing circuit-Module 143

Four-cell series lithium battery protection solution board, 20A overcurrent protection, with battery balancing circuit-Module 143

2023-05-15 16:57:00
UA
Original
310

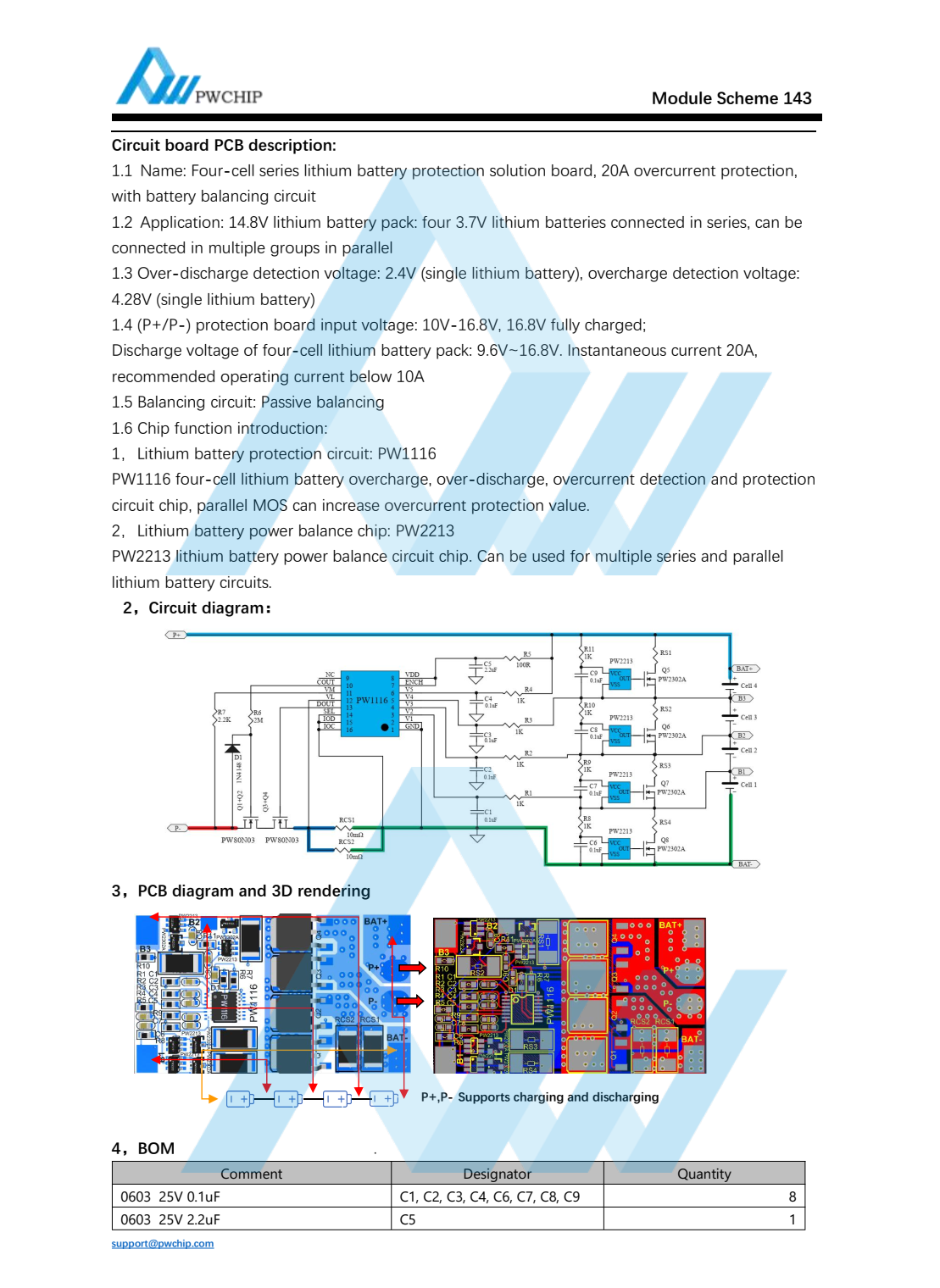

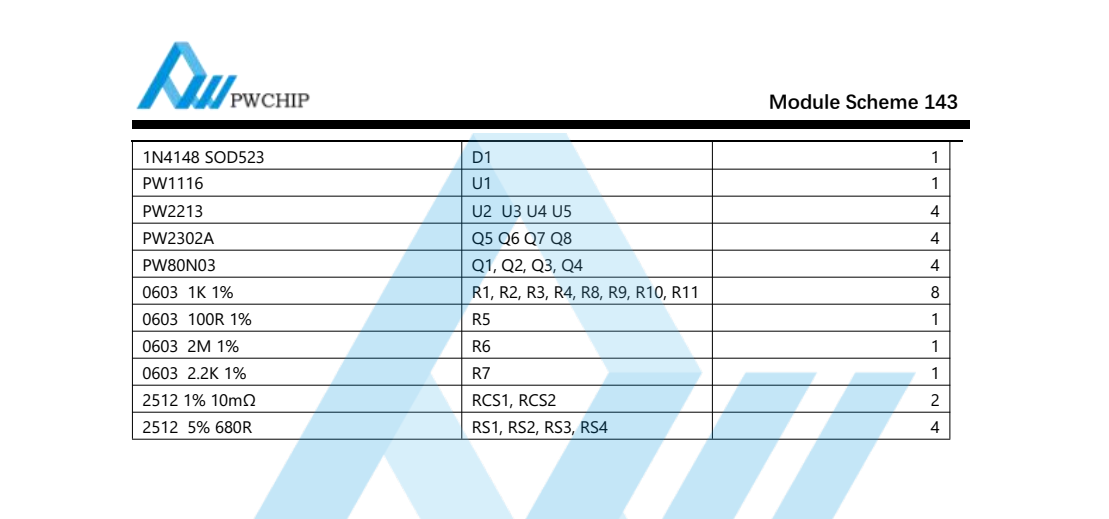

Summary : 1.1 Name: Four-cell series lithium battery protection solution board, 20A overcurrent protection,with battery balancing circuit1.2 Application: 14.8V lithium battery pack: four 3.7V lithium batteries connected in series, can beconnected in multiple groups in parallel1.3 Over-discharge detection voltage: 2.4V (single lithium battery), overcharge detection voltage:4.28V (single lithium battery)1.4 (P+/P-) protection board input voltage: 10V-16.8V, 16.8V fully charged;Discharge voltage of four-cell lithium battery pack: 9.6V~16.8V. Instantaneous current 20A,recommended operating current below 10A1.5 Balancing circuit: Passive balancing
