PW1515, a 32V voltage tolerant, 5V input current limiting and overvoltage protection chip template, with a range of 0.5A-1.5A-Module 154
PW1515, a 32V voltage tolerant, 5V input current limiting and overvoltage protection chip template, with a range of 0.5A-1.5A-Module 154
2023-05-15 17:47:00
UA
Original
285

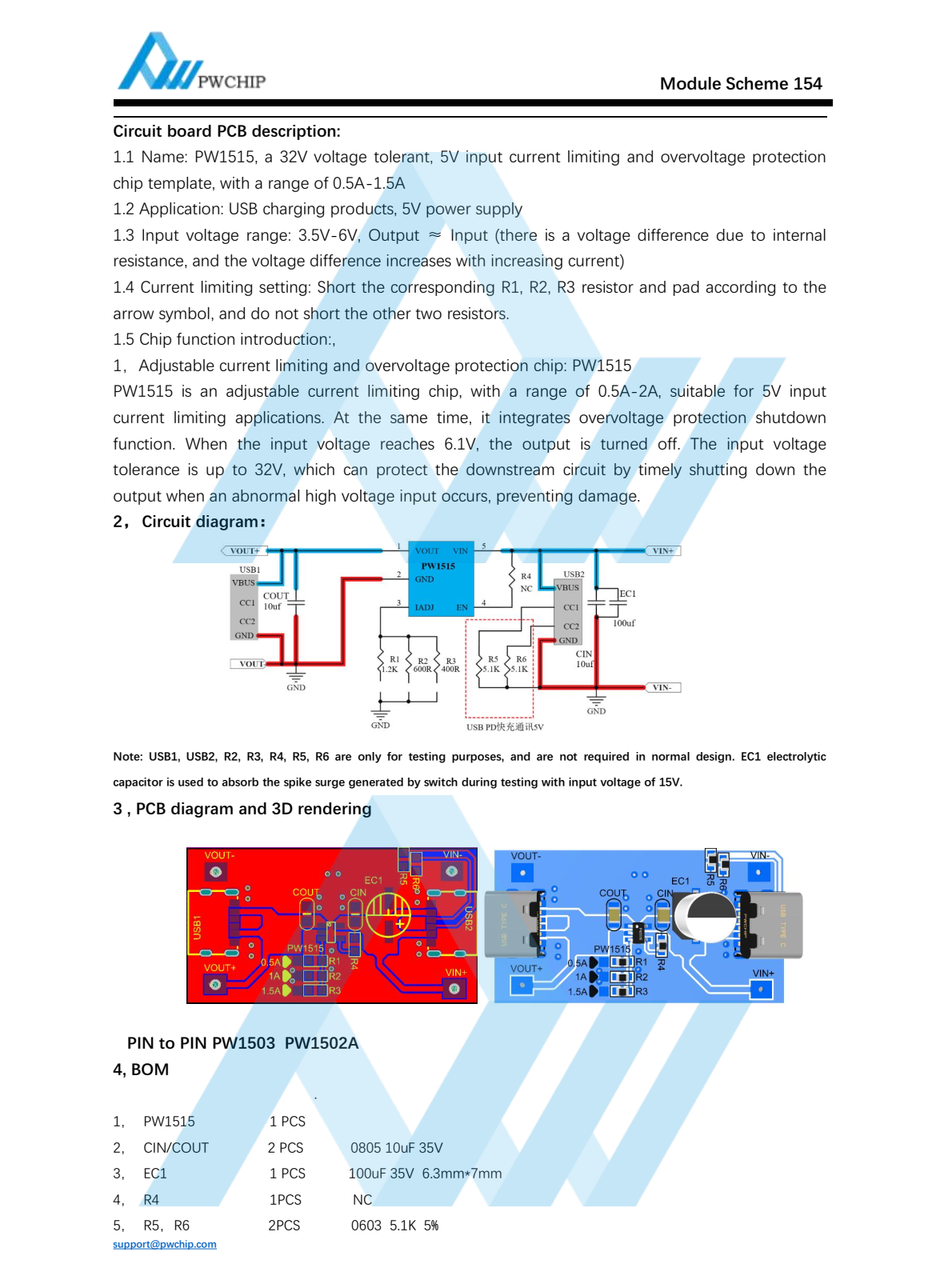

Summary : 1.1 Name: PW1515, a 32V voltage tolerant, 5V input current limiting and overvoltage protectionchip template, with a range of 0.5A-1.5A1.2 Application: USB charging products, 5V power supply1.3 Input voltage range: 3.5V-6V, Output ≈ Input (there is a voltage difference due to internalresistance, and the voltage difference increases with increasing current)1.4 Current limiting setting: Short the corresponding R1, R2, R3 resistor and pad according to thearrow symbol, and do not short the other two resistors
