PW7120 + PW8205A8TS×2 2-Cell Li-ion Battery Charge-Discharge Protection Board Solution, Continuous 3A, Overcurrent Protection 9A
Product Details PCB Design Suggestions

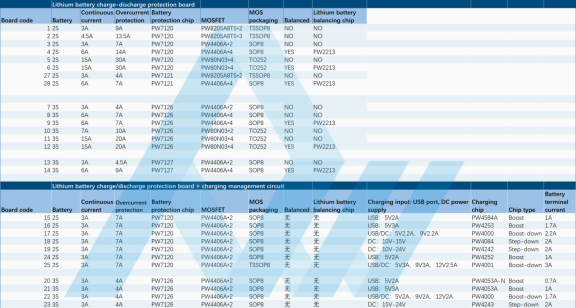

2S Lithium Battery Protection Board (Code 4) Product Introduction
Overview
This protection board adopts the self-developed PW7120 protection chip from Pingxin Micro, paired with four PW4406A MOSFETs, to provide complete overcharge, over-discharge, overcurrent, and short-circuit protection for 2S lithium battery packs (two-series cell configuration, 7.4 V nominal voltage, 8.4 V fully charged). It delivers a continuous discharge current of 6 A and an overcurrent protection threshold of approximately 14 A. The integrated PW2213 balancing chip effectively extends the service life of the battery pack.
Key Parameters
|
Parameter |
Specification |
|
Battery Type |
2S (two-series Li-ion pack, 7.4 V nominal, 8.4 V fully charged) |
|
Continuous Discharge Current |
6 A |
|
Overcurrent Protection Current |
Approx. 14 A |
|
Protection IC |
PW7120 |
|
MOSFET |
PW4406A × 4 |
|
MOSFET Package |
SOP8 |
|
Balancing Function |
With balancing |
|
Balancing IC |
PW2213 |
|
Board Dimensions |
48 mm × 20 mm |
Main Control ICs
PW7120 is a protection IC specifically designed for 2-cell lithium batteries. It integrates overcharge, over-discharge, overcurrent, and short-circuit protection, requires minimal external components, and features low power consumption.
PW2213 is a high-precision battery balancing IC that effectively eliminates voltage differences between the two cells, extends battery pack service life, and ensures consistent charge and discharge performance.
Solution Features
· Four PW4406A MOSFETs connected in parallel, providing 14 A overcurrent protection and 6 A continuous discharge.
· Built-in PW2213 balancing function automatically balances the voltage of the two cells.
· The balancing function extends battery pack cycle life by more than 30%.
· SOP8-packaged MOSFETs.
· Suitable for long-duration, high-current discharge applications.
· Board dimensions: 48 mm × 20 mm.

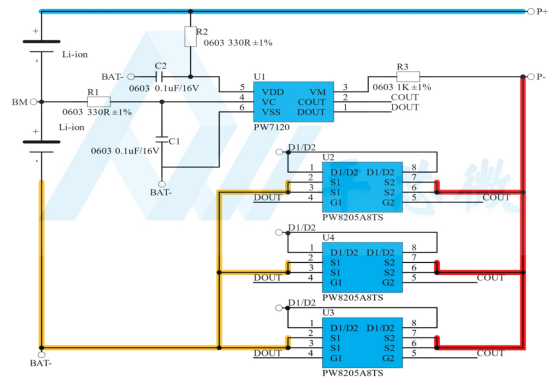

Circuit Schematic
Circuit Schematic

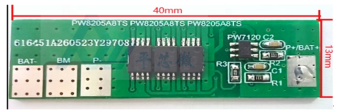

Actual PCB Photo
Actual PCB Photo
BOM (Bill of Materials)
|
No. |
Designator |
Model / Specification |
Qty |
|
1 |
C1, C2, C3, C4 |
0603 0.1 µF / 25 V |
4 |
|
2 |
Q1, Q2 |
SOT-23-3L PW2302 |
2 |
|
3 |
R1, R2 |
0603 330 Ω ±1% |
2 |
|
4 |
R3, R7, R8 |
0603 1 kΩ ±1% |
3 |
|
5 |
R5, R6 |
2512 620 Ω ±1% |
2 |
|
6 |
U1 |
PW7120 SOT23-6 |
1 |
|
7 |
U2, U3, U4, U5 |
PW4406A SOP8 |
4 |
|
8 |
U6, U7 |
PW2213 SOT23-6L |
2 |
Typical Applications
Power tools, electric scooters, massage guns, high-power LED lights, electric garden tools, and car vacuum cleaners.
Wiring Instructions
Please refer to the circuit schematic for battery connection. The charge and discharge interface is P+ and P-.
Documentation and Technical Support
We provide chip samples, technical documentation, and circuit design support. For more solutions or to obtain documentation, please contact us at support@pwchip.com or reach out to our distributors at https://www.pwchip.com/page/180.html.
