2S Lithium Battery Protection Board (Code 6) Product Introduction

Overview

This protection board adopts Pingxin Micro’s proprietary PW7120 protection chip, paired with four PW80N03 MOSFETs, to provide complete overcharge, over-discharge, overcurrent, and short-circuit protection for 2S lithium battery packs (two cells in series, 7.4 V nominal, 8.4 V fully charged). It delivers a continuous discharge current of 15 A and an overcurrent protection threshold of approximately 30 A. The integrated PW2213 cell-balancing chip effectively extends the service life of the battery pack.

Specifications

Parameter

Specification

Battery Type

2S (two-cell series lithium battery pack, 7.4 V, 8.4 V fully charged)

Continuous Discharge Current

15 A

Overcurrent Protection Current

Approx. 30 A

Protection IC

PW7120

MOSFET

PW80N03 × 4

MOSFET Package

TO252

Balancing Function

With balancing

Balancing IC

PW2213

Board Dimensions

48 mm × 20 mm

Main Control Chip Introduction

PW7120 is a protection IC specially designed for 2-cell lithium batteries. It integrates overcharge, over-discharge, overcurrent, and short-circuit protection, requires minimal external components, and offers low power consumption.

PW2213 is a high-precision battery balancing IC that effectively eliminates voltage differences between the two cells, extends battery pack service life, and ensures charge/discharge consistency.

Solution Features

· Four PW80N03 TO252 high-power MOSFETs, 30 A overcurrent protection, and 15 A continuous discharge capability

· PW2213 balancing function automatically equalizes the voltage of the two cells

· Balancing function extends battery pack cycle life by more than 30%

· TO252 package delivers excellent heat dissipation, supporting long-term high-current discharge without overheating

· Ideal for high-end applications requiring long cycle life and high current

· Compact board size: 48 mm × 20 mm

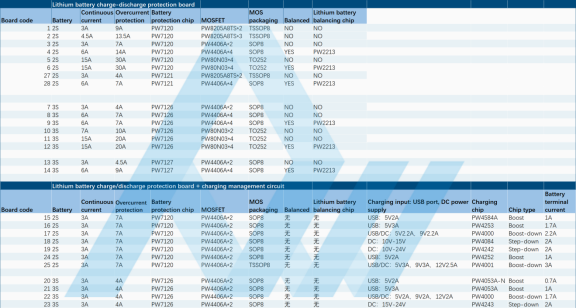

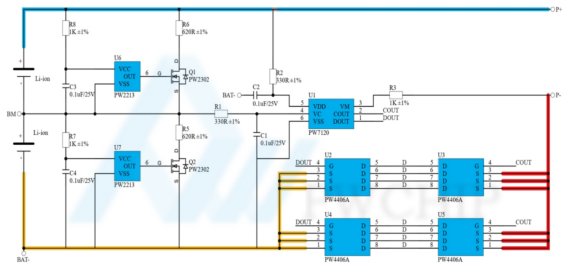

Circuit Schematic


Circuit Schematic

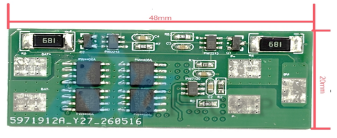

PCB Photo


PCB Photo

BOM (Bill of Materials)

No.

Reference

Model / Specification

Qty

1

C1, C2, C3, C4

0603 0.1 µF / 25 V

4

2

Q1, Q2

PW2302 SOT23-3

2

3

Q3, Q4, Q5, Q6

PW80N03 TO252-3L

4

4

R1, R2

0603 330 Ω ±1%

2

5

R3, R7, R8

0603 1 kΩ ±1%

3

6

R5, R6

0603 620 Ω ±1%

2

7

U1

PW7120 SOT23-6

1

8

U6, U7

PW2213 SOT23-6L

2

Typical Applications

Power tools, electric scooters, massage guns, high-power LED lights, electric garden tools, and car vacuum cleaners.

Wiring Instructions

Please refer to the labels on the circuit schematic for battery connection. The charge/discharge terminals are P+ and P-.
