3S Li-ion Battery Protection Board — Code 7

Overview

This protection board uses the proprietary PW7126 protection IC from Pingxin Micro, paired with two PW4406A MOSFETs. It provides complete over-charge, over-discharge, over-current, and short-circuit protection for 3S (three-cell series) Li-ion battery packs rated at 11.1 V nominal / 12.6 V fully charged. The board supports a continuous discharge current of 3 A, with an over-current protection threshold of approximately 4 A.

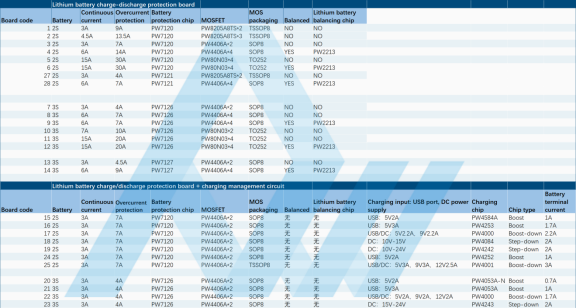

Specifications

Parameter

Specification

Battery Type

3S (three-cell series Li-ion pack, 11.1 V nominal, 12.6 V fully charged)

Continuous Discharge Current

3 A

Over-Current Protection Current

Approx. 4 A

Protection IC

PW7126

MOSFET

PW4406A × 2

MOSFET Package

SOP8

Cell Balancing

None

Balancing IC

None

Board Dimensions

To be confirmed

Main Control IC

The PW7126 is a dedicated protection IC for 3-cell Li-ion batteries. It integrates over-charge, over-discharge, over-current, and short-circuit protection, and supports high-precision voltage detection.

Solution Highlights

· Two PW4406A MOSFETs provide 4 A over-current protection and 3 A continuous discharge.

· SOP8 package is easy to solder and cost-effective.

· PW7126 delivers high-precision voltage detection for accurate protection.

· Minimal external components reduce BOM cost.

· Ideal for low-power 3S Li-ion battery pack applications.

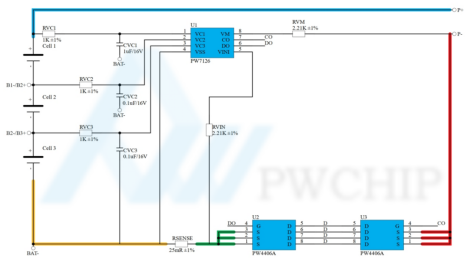

Circuit Schematic


Circuit Schematic

BOM (Bill of Materials)

No.

Designator

Model / Specification

Qty

1

CVC1

0603 1 µF / 16 V

1

2

CVC2, CVC3

0603 0.1 µF / 16 V

2

3

RSENSE

1206 25 mΩ ±1 %

1

4

RVC1, RVC2, RVC3

0603 1 kΩ ±1 %

3

5

RVIN, RVM

0603 2.21 kΩ ±1 %

2

6

U1

PW7126 SOP8

1

7

U2, U3

PW4406A SOP8

2

Typical Applications

Bluetooth speakers, portable mini fans, small electric toys, LED light strings, and small instrumentation devices.

Wiring Instructions

Please wire the battery cells according to the labels shown in the schematic. The charge/discharge interface is P+ and P−.

Documentation & Technical Support

We provide chip samples, technical documentation, and circuit design support. For more solutions or to request materials, please contact us at support@pwchip.com or reach out through our distributor channel at https://www.pwchip.com/page/180.html.
