3S Li-ion Battery Protection Board — Code 9 Product Introduction

Overview

This protection board adopts Pingxin Micro’s self-developed PW7126 protection IC, paired with four PW4406A MOSFETs. It delivers complete overcharge, over-discharge, overcurrent, and short-circuit protection for 3S (three-cell series Li-ion) battery packs rated at 11.1 V nominal and 12.6 V fully charged. The board supports a continuous discharge current of 6 A, with an overcurrent protection threshold of approximately 7 A. An integrated PW2213 cell-balancing IC effectively extends the service life of the battery pack.

Specifications

Parameter

Specification

Battery Type

3S (three-cell series Li-ion pack, 11.1 V nominal, 12.6 V fully charged)

Continuous Discharge Current

6 A

Overcurrent Protection Current

~7 A

Protection IC

PW7126

MOSFET

PW4406A × 4

MOSFET Package

SOP8

Cell Balancing

With balancing

Balancing IC

PW2213

Main Control IC Introduction

PW7126 is a protection IC dedicated to 3-cell Li-ion batteries. It integrates overcharge, over-discharge, overcurrent, and short-circuit protection, and supports high-precision voltage detection.

PW2213 is a high-precision cell-balancing IC that effectively eliminates voltage differences among cells, extends battery pack service life, and ensures consistent charge/discharge behavior.

Solution Features

· Four PW4406A MOSFETs in parallel, 7 A overcurrent protection, 6 A continuous discharge

· PW2213 three-cell balancing function automatically equalizes the voltage of all three cells

· Balancing function extends battery pack cycle life by more than 30%

· SOP8-packaged MOSFETs offer a balanced cost-performance ratio

· Ideal for 3S battery pack applications requiring long service life

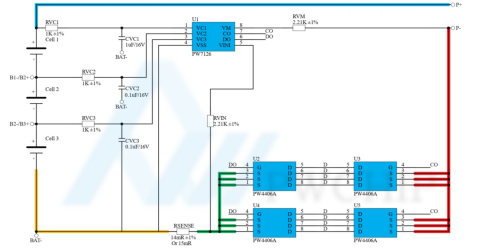

Circuit Schematic


Circuit Schematic

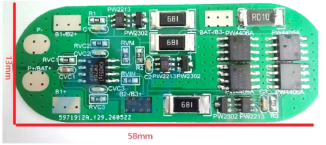

PCB Physical Image

Dimensions: 58 mm × 33 mm



PCB Physical Image

BOM (Bill of Materials)

No.

Designator

Model / Specification

Qty

1

C1, C2, C3

0603 0.1 µF / 25 V

3

2

CVC1

0603 1 µF / 16 V

1

3

CVC2, CVC3

0603 0.1 µF / 16 V

2

4

Q1, Q2, Q3

PW2302 SOT-23-3L

3

5

R1, R2, R3, RVC1, RVC2, RVC3

0603 1 kΩ ±1%

6

6

RBAL1, RBAL2, RBAL3

2512 620 Ω ±1%

3

7

RSENSE

2512 14 mΩ ±1%

1

8

RVIN, RVM

0603 2.21 kΩ ±1%

2

9

U1

PW7126 SOP8

1

10

U2, U3, U4, U5

PW4406A SOP8

4

11

U6, U7, U8

PW2213 SOT23-6L

3

Typical Applications

Power tools, electric scooters, massage guns, high-power LED lights, and electric garden tools.

Wiring Instructions

Please refer to the circuit schematic for battery connection. The charge/discharge interface is P+ and P-.

Documentation & Technical Support

We provide IC samples, technical documentation, and circuit design support. For more solutions or to request materials, please contact us at support@pwchip.com or reach out to our distributors at https://www.pwchip.com/page/180.html.
