3S Li-ion Battery Protection Board — Code 12 Product Brief

Overview

This protection board is built around PWCHIP’s proprietary PW7126 protection IC and four PW80N03 MOSFETs. It provides complete overcharge, over-discharge, overcurrent, and short-circuit protection for 3S lithium-ion battery packs (three cells in series, 11.1 V nominal, 12.6 V fully charged). The board supports a continuous discharge current of 15 A, with an overcurrent protection threshold of approximately 20 A. It also integrates the PW2213 balancing IC, which effectively extends battery pack service life.

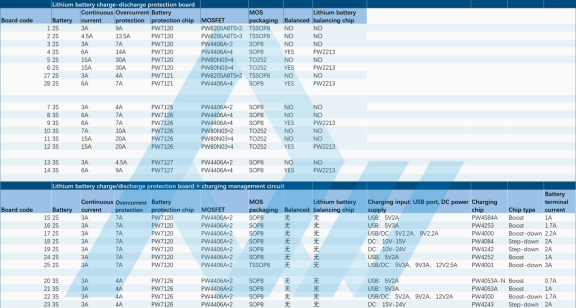

Specifications

Parameter

Specification

Battery type

3S (three-cell Li-ion pack, 11.1 V nominal, 12.6 V fully charged)

Continuous discharge current

15 A

Overcurrent protection current

~20 A

Protection IC

PW7126

MOSFET

PW80N03 × 4

MOSFET package

TO-252

Cell balancing

Yes

Balancing IC

PW2213

Main Control IC

PW7126 is a protection IC specifically designed for 3-cell lithium-ion battery packs. It integrates overcharge, over-discharge, overcurrent, and short-circuit protection, and supports high-precision voltage detection.

PW2213 is a high-precision cell balancing IC. It effectively eliminates voltage differences between cells, extends battery pack service life, and ensures consistent charge/discharge performance.

Key Features

· Four PW80N03 TO-252 MOSFETs in parallel deliver 20 A overcurrent protection and 15 A continuous discharge.

· Three-cell balancing with PW2213 automatically equalizes the voltage of all three cells.

· The TO-252 package offers excellent heat dissipation, ensuring stable operation under high current for extended periods.

· Balancing function extends battery pack cycle life by more than 30 %.

· Ideal for premium high-power 3S battery pack applications.

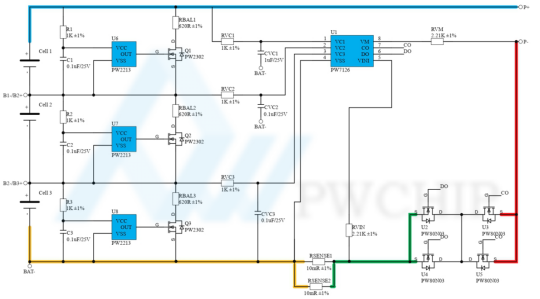

Circuit Schematic


Code 12 schematic

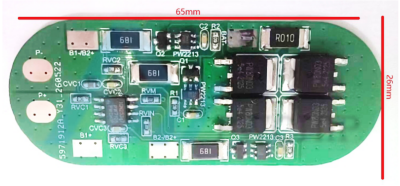

PCB Photo



Code 12 PCB

BOM

No.

Reference

Model / Specification

Qty

1

C1, C2, C3, CVC2, CVC3

0603 0.1 µF / 25 V

5

2

CVC1

0603 1 µF / 25 V

1

3

Q1, Q2, Q3

PW2302 SOT-23-3L

3

4

R1, R2, R3, RVC1, RVC2, RVC3

0603 1 kΩ ±1 %

6

5

RBAL1, RBAL2, RBAL3

2512 620 Ω ±1 %

3

6

RSENSE1, RSENSE2

2512 10 mΩ ±1 %

2

7

RVIN, RVM

0603 2.21 kΩ ±1 %

2

8

U1

PW7126 SOP8

1

9

U2, U3, U4, U5

PW80N03 TO-252

4

10

U6, U7, U8

PW2213 SOT23-6L

3

Typical Applications

Power tools, electric scooters, electric bicycles, massage guns, high-power motor drives, car vacuum cleaners.

Wiring Notes

Please wire the battery according to the labels on the schematic. The charge/discharge terminals are P+ and P-.

Documentation and Technical Support

We provide chip samples, technical documentation, and circuit design support. For more solutions or to request documentation, please contact us at support@pwchip.com or reach an authorized distributor at https://www.pwchip.com/page/180.html.
