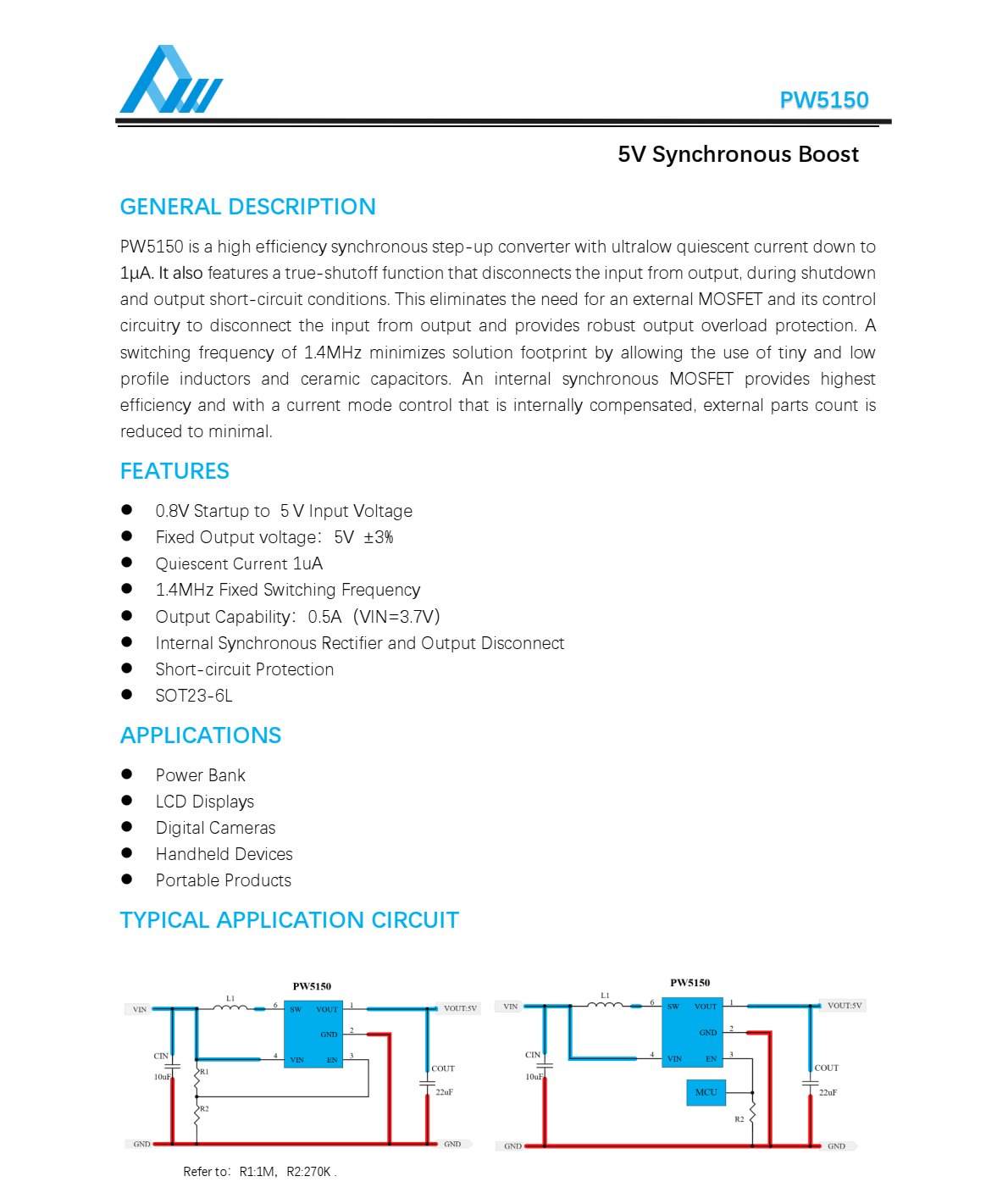

PW5150

  • Model PW5150
  • Type Synchronous Rectification Boost Converter
  • Input Voltage Range 0.8V~ 5V
  • Output Voltage Range 5V
  • Output Current 500mA（VIN=3.7V）
  • Operating Frequency 1.4MHZ
  • Static Power Consumption 1.2uA

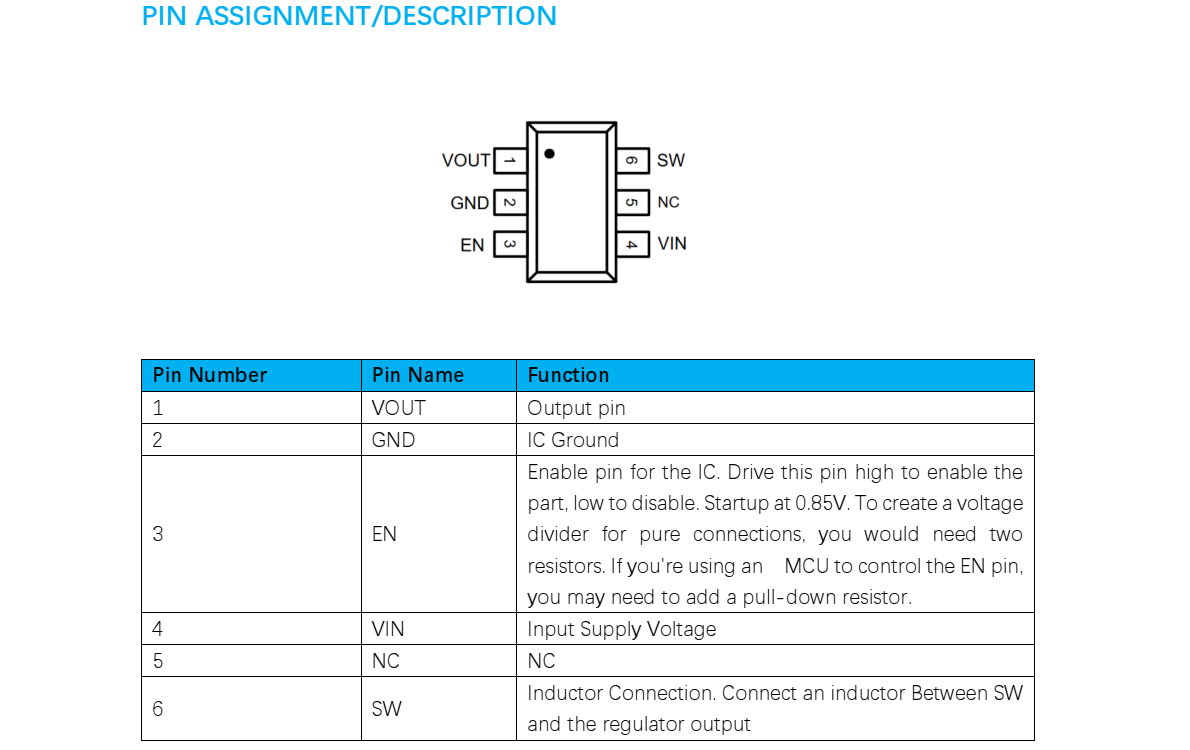

  • Packaging SOT23-6L
  • Note EN True Shutdown Boost 5V Output Chip
  • Production Mass Production
  • Count

Product Details PCB Design Suggestions

Write a Comment
Comment
Kelvin Leung 2025-04-21 21:23:57
Hi, I got the TDS from your product website but I found no parameter about supply current (or operating current) of the chips Pw5100, Pw5103 and Pw5150 in voltage step-up operation was specified in the TDS. Could please provide these data for our reference. Thanks.
1/1
