Charging board for four-series 16.8V lithium batteries supporting PD/QC fast charging protocol with high voltage input of 5V-9V-Module 38
Charging board for four-series 16.8V lithium batteries supporting PD/QC fast charging protocol with high voltage input of 5V-9V-Module 38
2023-05-13 11:32:00
UA
Original
286

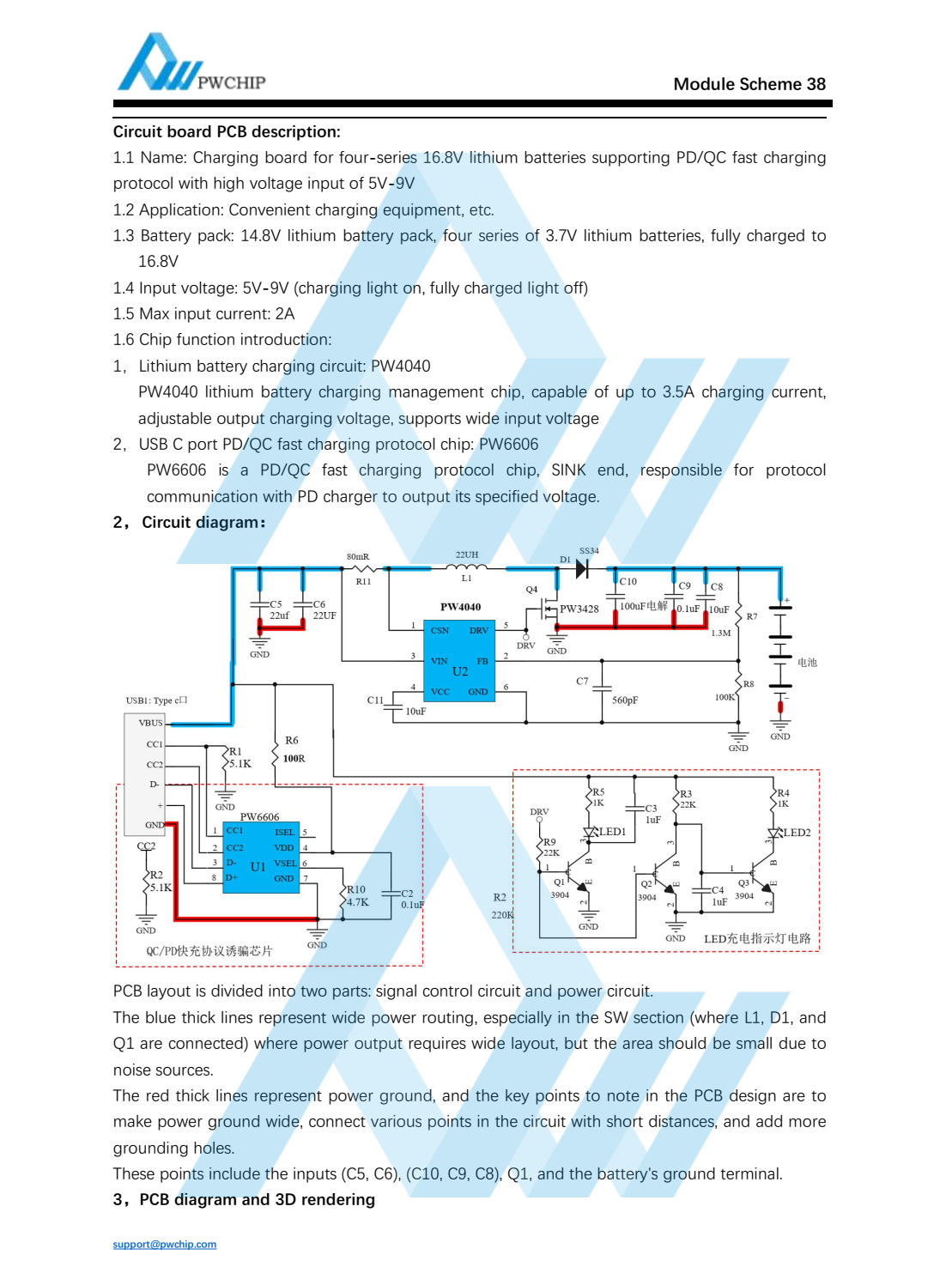

Summary : 1.1 Name: Charging board for four-series 16.8V lithium batteries supporting PD/QC fast chargingprotocol with high voltage input of 5V-9V1.2 Application: Convenient charging equipment, etc.1.3 Battery pack: 14.8V lithium battery pack, four series of 3.7V lithium batteries, fully charged to16.8V1.4 Input voltage: 5V-9V (charging light on, fully charged light off)1.5 Max input current: 2A
