PW2051, PW2052, PW2052B, PW2053, PW2058 Voltage Regulator Circuit Board-Module 39/40/41/42/43

2023-05-13 11:39:00

Original

386

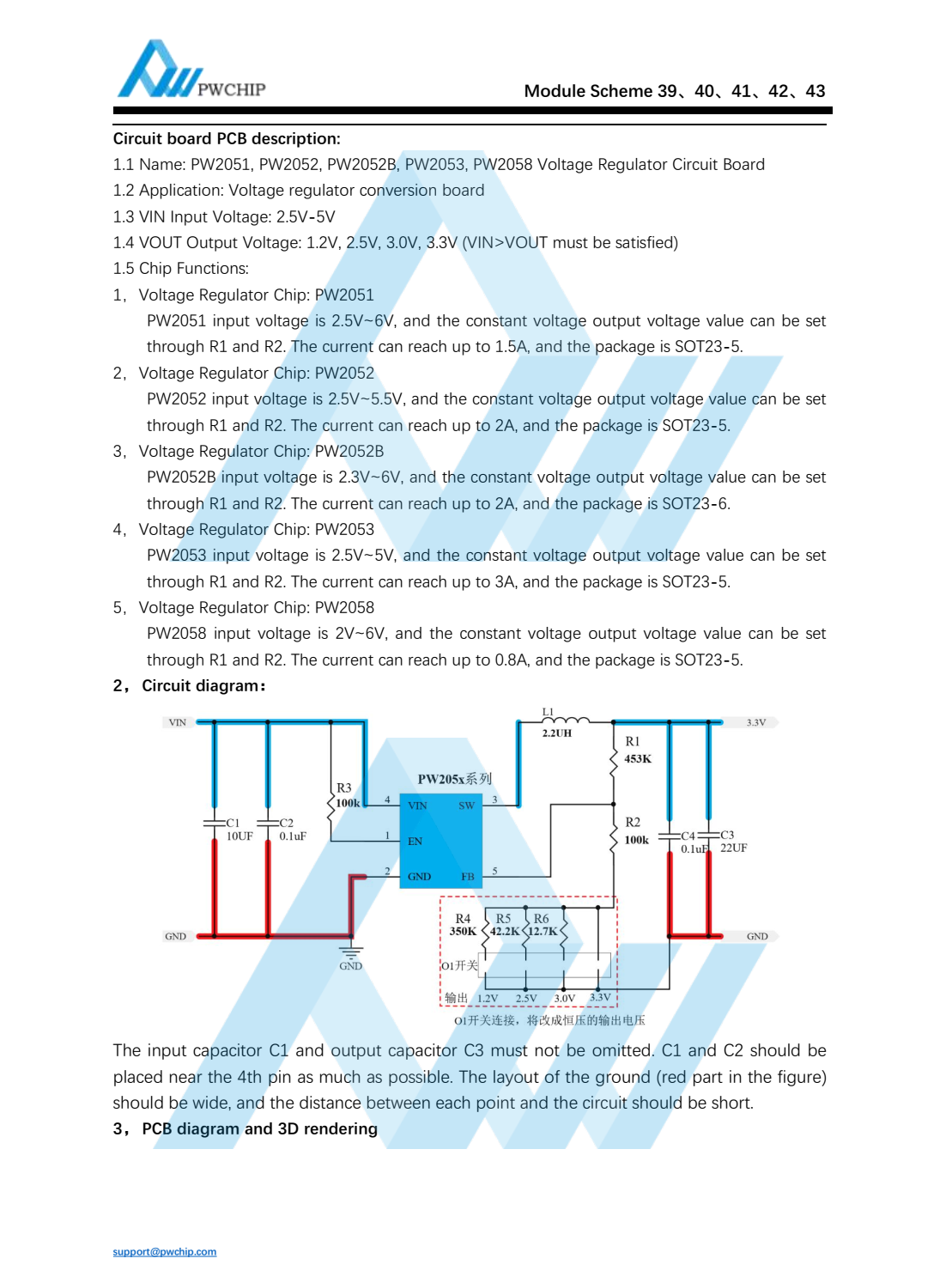

Summary : 1.1 Name: PW2051, PW2052, PW2052B, PW2053, PW2058 Voltage Regulator Circuit Board1.2 Application: Voltage regulator conversion board1.3 VIN Input Voltage: 2.5V-5V1.4 VOUT Output Voltage: 1.2V, 2.5V, 3.0V, 3.3V (VIN>VOUT must be satisfied)

39密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
