Lithium Battery Charging and Discharging Board with 5V2A Charging and Boosting and 5V2.4A Discharging-Module 91
Lithium Battery Charging and Discharging Board with 5V2A Charging and Boosting and 5V2.4A Discharging-Module 91
2023-05-15 10:29:00
UA
Original
292

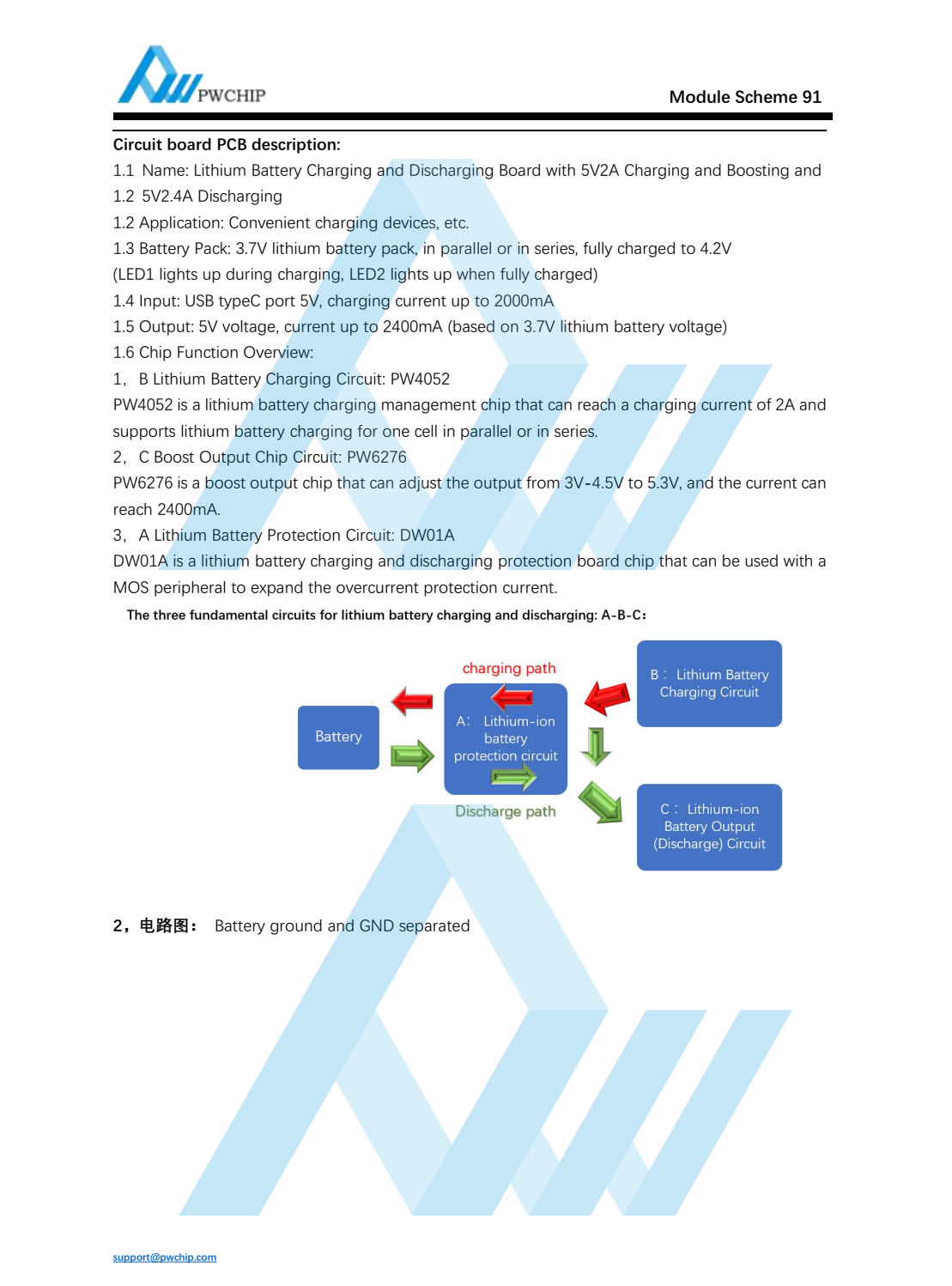

Summary : 1.1 Name: Lithium Battery Charging and Discharging Board with 5V2A Charging and Boosting and 5V2.4A Discharging1.2 Application: Convenient charging devices, etc.1.3 Battery Pack: 3.7V lithium battery pack, in parallel or in series, fully charged to 4.2V(LED1 lights up during charging, LED2 lights up when fully charged)1.4 Input: USB typeC port 5V, charging current up to 2000mA1.5 Output: 5V voltage, current up to 2400mA (based on 3.7V lithium battery voltage)
