5V-12V Charging Chip for Four Series Lithium Iron Phosphate Batteries, PW4000 Supports Boost/Buck Fast Charging PD-Module 121
5V-12V Charging Chip for Four Series Lithium Iron Phosphate Batteries, PW4000 Supports Boost/Buck Fast Charging PD-Module 121
2023-05-15 14:45:00
UA
Original
322

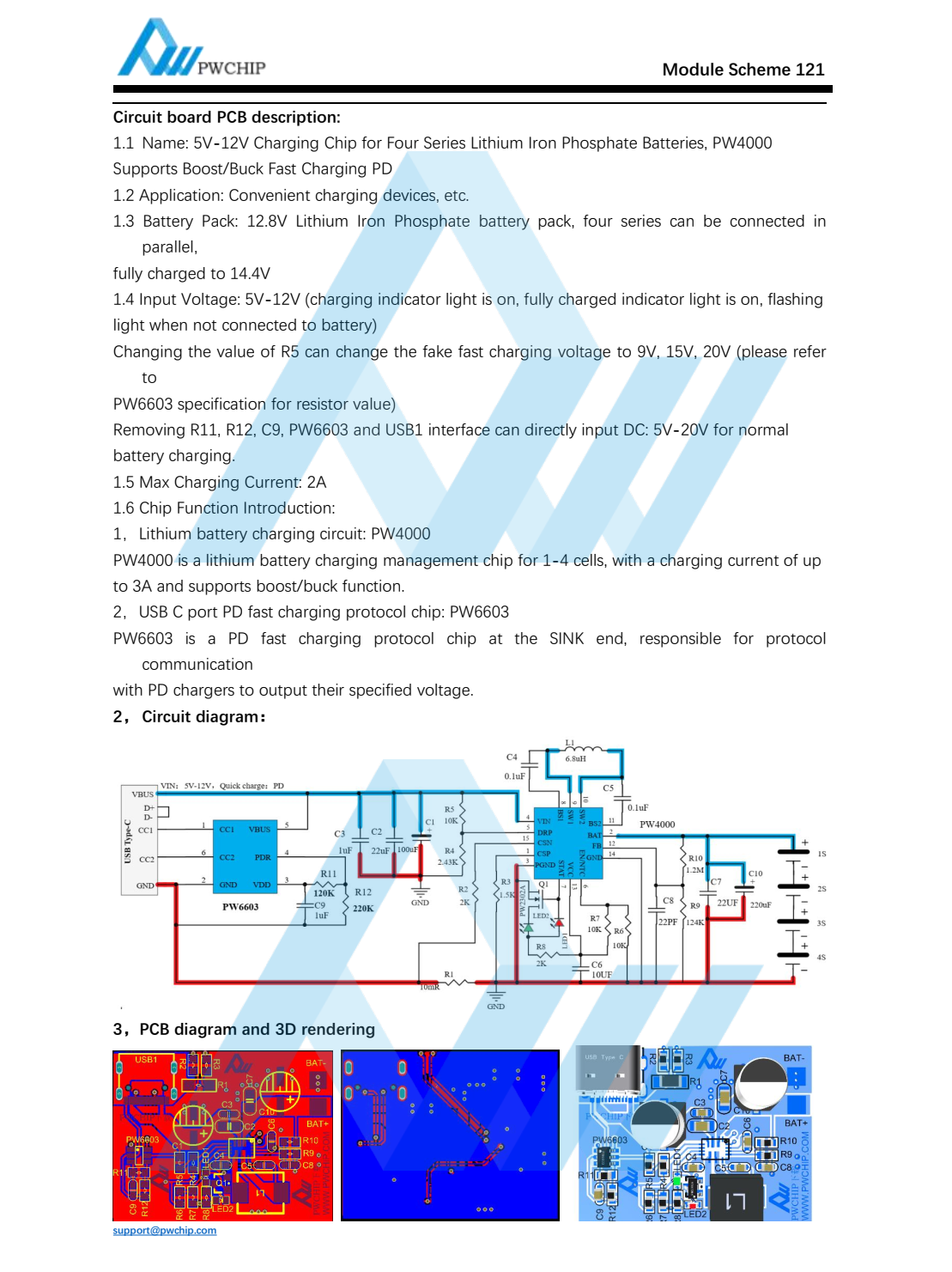

Summary : 1.1 Name: 5V-12V Charging Chip for Four Series Lithium Iron Phosphate Batteries, PW4000Supports Boost/Buck Fast Charging PD1.2 Application: Convenient charging devices, etc.1.3 Battery Pack: 12.8V Lithium Iron Phosphate battery pack, four series can be connected inparallel,fully charged to 14.4V1.4 Input Voltage: 5V-12V (charging indicator light is on, fully charged indicator light is on, flashinglight when not connected to battery)Changing the value of R5 can change the fake fast charging voltage to 9V, 15V, 20V (please refertoPW6603 specification for resistor value)Removing R11, R12, C9, PW6603 and USB1 interface can directly input DC: 5V-20V for normalbattery charging.1.5 Max Charging Current: 2A
