Two-series lithium battery charging and discharging board with 5V2A input and output through USB C port-Module 122
Two-series lithium battery charging and discharging board with 5V2A input and output through USB C port-Module 122
2023-05-15 15:01:00
UA
Original
290

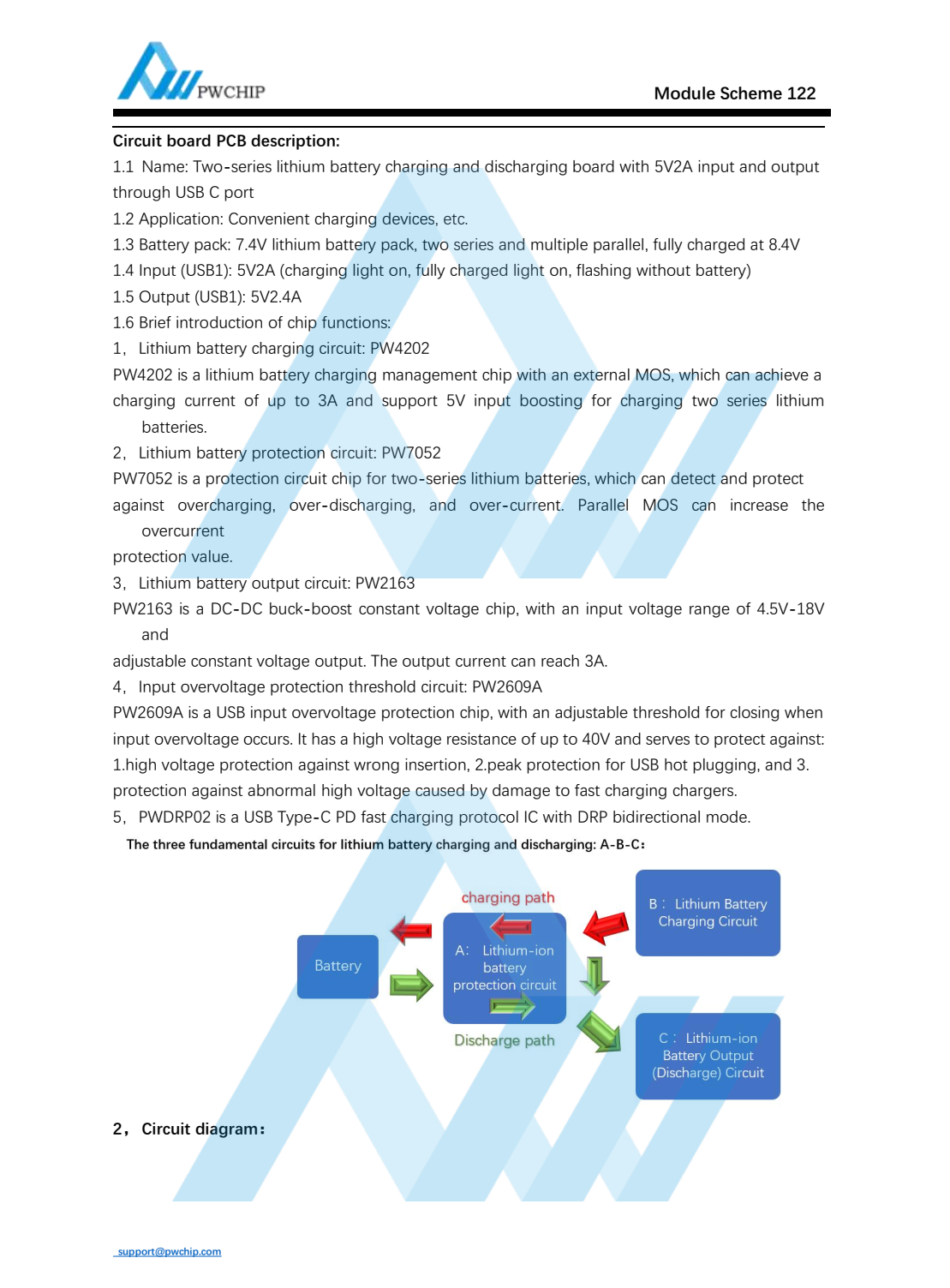

Summary : 1.1 Name: Two-series lithium battery charging and discharging board with 5V2A input and outputthrough USB C port1.2 Application: Convenient charging devices, etc.1.3 Battery pack: 7.4V lithium battery pack, two series and multiple parallel, fully charged at 8.4V1.4 Input (USB1): 5V2A (charging light on, fully charged light on, flashing without battery)1.5 Output (USB1): 5V2.4A
