Two-cell Lithium Battery Protection Board, 10A overcurrent-Module 146

2023-05-15 17:18:00

Original

315

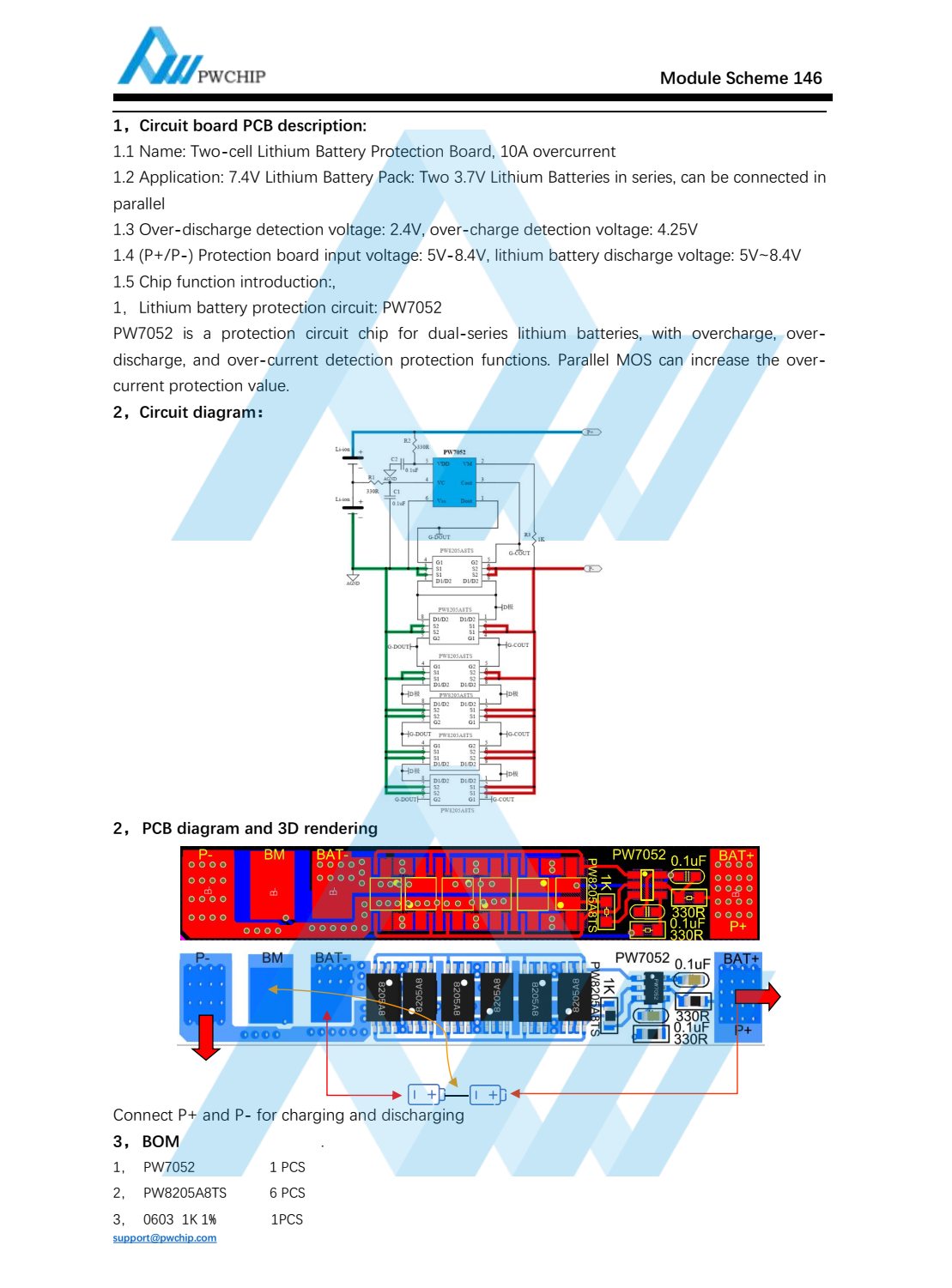

Summary : 1.1 Name: Two-cell Lithium Battery Protection Board, 10A overcurrent1.2 Application: 7.4V Lithium Battery Pack: Two 3.7V Lithium Batteries in series, can be connected inparallel1.3 Over-discharge detection voltage: 2.4V, over-charge detection voltage: 4.25V1.4 (P+/P-) Protection board input voltage: 5V-8.4V, lithium battery discharge voltage: 5V~8.4V

146号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
