5S Lithium Battery Protection Board, 10A Overcurrent-Module 147

2023-05-15 17:21:00

Original

285

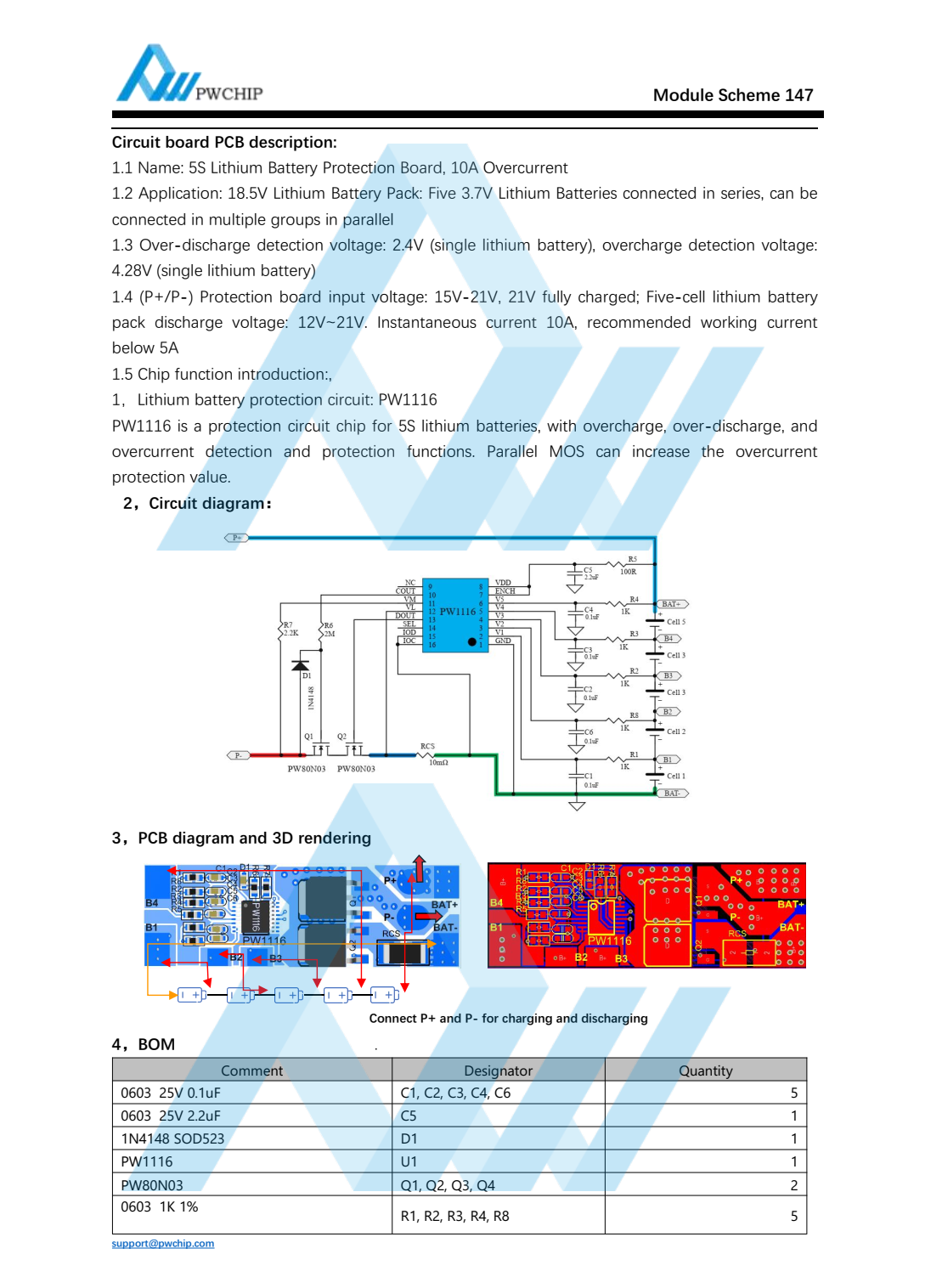

Summary : 1.1 Name: 5S Lithium Battery Protection Board, 10A Overcurrent1.2 Application: 18.5V Lithium Battery Pack: Five 3.7V Lithium Batteries connected in series, can beconnected in multiple groups in parallel1.3 Over-discharge detection voltage: 2.4V (single lithium battery), overcharge detection voltage:4.28V (single lithium battery)1.4 (P+/P-) Protection board input voltage: 15V-21V, 21V fully charged; Five-cell lithium batterypack discharge voltage: 12V~21V. Instantaneous current 10A, recommended working currentbelow 5A

147号密码是PWCHIP ，WWW.PWCHIP.COM.zip 1 下载
